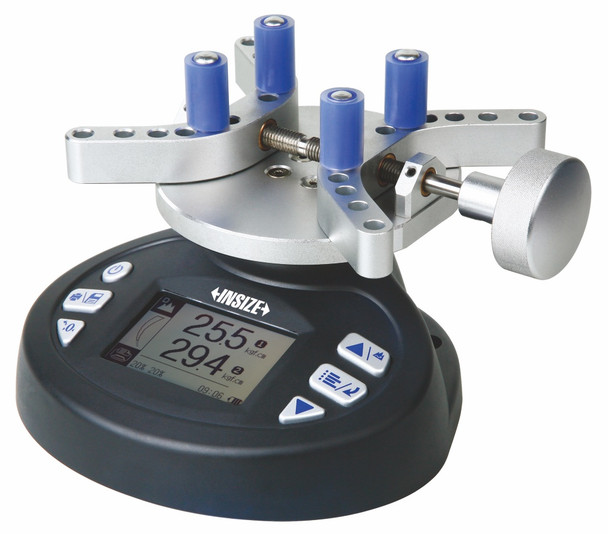

Insize IST-DCT10 – Digital Bottle Cap Torque Tester, 88.5lbf.in/7.4lbf.ft
L. Dewitt's SKU #: IST-DCT10 | Mfr Part #: IST-DCT10Insize IST-DCT10 is a digital bottle cap torque tester with 88.5 lbf.in / 7.4 lbf.ft capacity, measuring opening and tightening torque of caps on containers .77-7.48IN in diameter. Results go out by wireless or USB.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Capacity 88.5 lbf.in / 7.4 lbf.ft, resolution 0.05 lbf.in / 0.005 lbf.ft
- Accuracy ±0.5% of load capacity
- Clamping range .77-7.48IN diameter
- Modes: tracking, peak (max), first peak, double peak; low and high limits with judgement
- Wireless and USB output; wireless connection to printer
- Units: lbf.in, lbf.ft, N·m, N.cm, kgf.cm
- Backlit LCD; overload alarm; calibration function; automatic power off
Technical Specifications
| Part Number | IST-DCT10 |
| Brand | Insize |
| Manufacturer Part Number | IST-DCT10 |
| Product Type | Digital Bottle Cap Torque Tester |
| Capacity | 88.5 lbf.in / 7.4 lbf.ft |
| Resolution | 0.05 lbf.in / 0.005 lbf.ft |
| Accuracy | ±0.5% of capacity |
| Clamping Range | .77-7.48IN DIA |
| Output | Wireless, USB |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 8.31 lb |
| Package Dimensions | 16.14IN L x 13.78IN W x 9.84IN H |
| UPC/EAN | 6928640350023 |
| Sold As | 1 Each |
Choosing between options
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and cap diameter and the torque range you test — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
IST-DCT10 |
Product Family: |
Gages and Reference Tools |
Supplier Category Code: |
B |
EAN: |
6928640350023 |
Package Weight: |
8.31 lb |
Package Length: |
16.14 in |
Package Width: |
13.78 in |
Package Height: |
9.84 in |
Feature 1: |
Resolution 0.05lbf.in/0.005lbf.ft. Clamping range .77~7.48' DIA. Accuracy ±0.5% (of load capacity). |
Feature 2: |
Measuring mode: tracking, peak (max.), first peak, double peak, low and high limits with judgement. |
Feature 3: |
Output: wireless and USB. Measure the open and tighten torque of bottle cap. Units: lbf.in, lbf.ft, N.m, N.cm, kgf.cm. |
Feature 4: |
Wireless connection to printer. Automatic power off. LCD display with backlight. |
Feature 5: |
Overload alarm. With calibration function. |
