Description

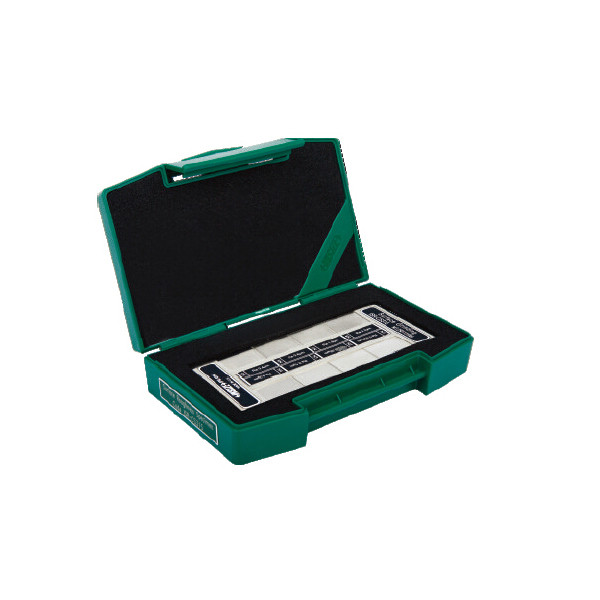

Insize ISR-CSE323 – Surface Roughness Specimen Set, Horizontal Milling, 8 Pcs Per Set
L. Dewitt's SKU #: ISR-CSE323 | Mfr Part #: ISR-CSE323Insize ISR-CSE323 is a set of 8 horizontal milling surface roughness specimens covering Ra 16-2000μin. Compare a machined surface against them by sight and touch to identify or specify its roughness.
Key Features
- Machining method: horizontal milling
- 8 specimens, Ra 16, 32, 63, 125, 250, 500, 1000, 2000μin
- Rz 72, 147, 265, 512, 1025, 2120, 3900, 7880μin
- For checking, identifying and specifying roughness by symbol
- Pure nickel, rust-proof
Technical Specifications
| Part Number | ISR-CSE323 |
| Brand | Insize |
| Manufacturer Part Number | ISR-CSE323 |
| Product Type | Surface Roughness Specimen Set, Horizontal Milling |
| Machining Method | Horizontal milling |
| Pieces | 8 |
| Ra Values | 16, 32, 63, 125, 250, 500, 1000, 2000μin |
| Rz Values | 72, 147, 265, 512, 1025, 2120, 3900, 7880μin |
| Material | Pure nickel |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.49 lb |
| Package Dimensions | 6.1IN L x 3.82IN W x 1.65IN H |
| UPC/EAN | 6928640376641 |
| Sold As | 1 Set (8 pcs) |
Choosing between options
- ISR-CS323 is the matching ISR-CS323 surface roughness specimen; confirm which you need with us.
Other sizes & versions in this series
- ISR-CSE319 – Machining method face turning
- ISR-CSE320 – Machining method cylindrical turning
- ISR-CSE321 – Machining method end milling
- ISR-CSE322 – 8 Pcs Per Set
- ISR-CSE325 – Machining method shaping (planing)
- ISR-CSE326 – 6 Pcs Per Set
- ISR-CSE328 – 6 Pcs Per Set
- ISR-CSE329 – 8 Pcs Per Set
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the machining process and roughness range you check — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISR-CSE323 |
Product Family: |
Testing and Specialty Instruments |
Supplier Category Code: |
A |
EAN: |
6928640376641 |
Package Weight: |
0.49 lb |
Package Length: |
6.1 in |
Package Width: |
3.82 in |
Package Height: |
1.65 in |
Feature 1: |
Machining method horizontal milling. |
Feature 2: |
Ra: 16, 32, 63, 125, 250, 500, 1000, 2000μin. Rz: 72, 147, 265, 512, 1025, 2120, 3900, 7880μin. |
Feature 3: |
For checking, identifying and specifying the roughness by symbol. |
Feature 4: |
Rust-proof, made of pure Nickel. |
