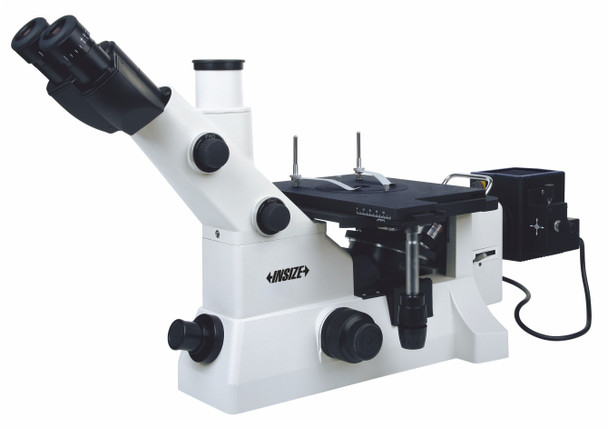

Insize ISM-M2000 – Metallurgical Microscope
L. Dewitt's SKU #: ISM-M2000 | Mfr Part #: ISM-M2000Insize ISM-M2000 is a metallurgical microscope for high-magnification observation and metallurgical image analysis, supplied with 5X, 10X, 20X, 50X and 100X plan achromatic objectives usable in bright and dark field. Kohler illumination gives an even field.
Key Features
- Wide-field 10X eyepieces, view field .87IN
- Plan achromatic objectives 5X, 10X, 20X, 50X and 100X, all included
- Objectives work in bright field and dark field
- Double-layer stage 6.30 x 5.51IN, travel 2.95 x 1.97IN (0.1MM/.004IN)
- Illumination 12V/50W halogen lamp, Kohler illumination system
- Built-in green, yellow, blue, gray and frosted glass filters
- Pupil distance 1.89-2.95IN; diopter adjustment ±5 on both eyepieces
Technical Specifications
| Part Number | ISM-M2000 |
| Brand | Insize |
| Manufacturer Part Number | ISM-M2000 |
| Product Type | Metallurgical Microscope |
| Eyepiece | WF 10X, view field .87IN |
| Objectives | Plan achromatic 5X, 10X, 20X, 50X, 100X |
| Stage Size | 6.30 x 5.51IN |
| Stage Travel | 2.95 x 1.97IN |
| Illumination | 12V/50W halogen, Kohler |
| Pupil Distance | 1.89-2.95IN |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 37.97 lb |
| Package Dimensions | 28.35IN L x 14.17IN W x 21.26IN H |
| UPC/EAN | 6928640348976 |
| Sold As | 1 Each |
What you'll also need
- Higher-power eyepieces ISM-M2000-15X and ISM-M2000-20X
- DIC attachment ISM-M2000-DIC
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the samples you inspect and whether you need a camera — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISM-M2000 |
Product Family: |
Optical and Video Inspection |
Supplier Category Code: |
B |
EAN: |
6928640348976 |
Package Weight: |
37.97 lb |
Package Length: |
28.35 in |
Package Width: |
14.17 in |
Package Height: |
21.26 in |
Feature 1: |
Eyepiece (wide field) 10X (view field .87' DIA). Objective (plan achromatic): 5X (included), 10X(included), 20X(included), 50X(included),100X (included). |
Feature 2: |
Stage: double layer, size 6.30×5.51', travel: 2.95×1.97'(0.1mm/.004'). Illumination:12V/50W halogen lamp |
Feature 3: |
Built-in green, yellow, blue, gray and frosted glass. Pupil distance 1.89~2.95'. Diopter adjustment ±5 diopter(two eyepieces). |
Feature 4: |
For high magnification observation and metallurgical image analysis. |
Feature 5: |
Objective can be used in both bright field and dark field. |
Feature 6: |
Kohler illumination system provides uniform illumination field. |
