Description

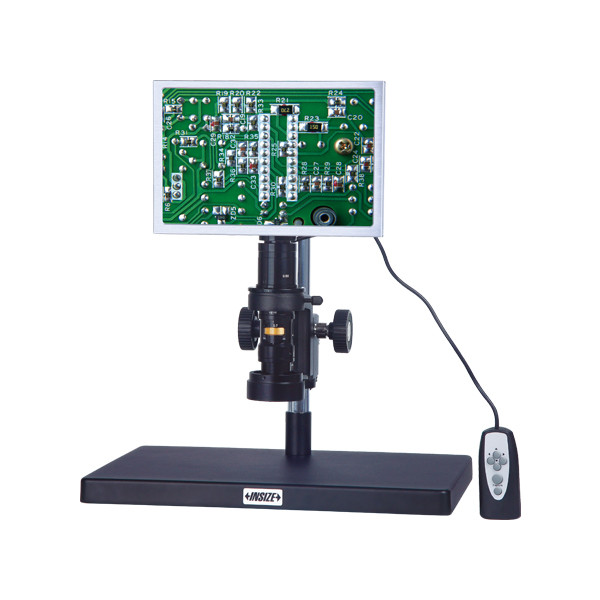

Insize ISM-DL300 – Digital Measuring Microscope with Display, without Contour Illumination
L. Dewitt's SKU #: ISM-DL300 | Mfr Part #: ISM-DL300Insize ISM-DL300 is a 15X-100X digital measuring microscope with its own display and built-in measuring software, so no computer is needed. It saves pictures to a USB flash disk and exports results to Excel; this version has no contour illumination.
Key Features
- Magnification 15X-100X
- 1/2IN CMOS sensor, 2M pixels, 1920 x 1080 (1080P)
- Built-in software runs without a computer, operated by mouse
- Takes pictures, saved to a USB flash disk
- Measurement results export to Excel
- Automatic white balance and exposure; brightness, contrast and gain adjustable
- No contour illumination
Technical Specifications
| Part Number | ISM-DL300 |
| Brand | Insize |
| Manufacturer Part Number | ISM-DL300 |
| Product Type | Digital Measuring Microscope with Display, without Contour Illumination |
| Magnification | 15X-100X |
| Sensor | 1/2IN CMOS, 2M |
| Resolution | 1920 x 1080 |
| Contour Illumination | No |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 23.62 lb |
| Package Dimensions | 18.9IN L x 14.17IN W x 16.54IN H |
| UPC/EAN | 6928640396861 |
| Sold As | 1 Each |
What you'll also need
- LED auxiliary illumination ISM-DL-LED
- Auxiliary objective ISM-DL-OB03X for a wider view
Choosing between options
- Need back-lit outlines for profile measurement? ISM-DL301-U is the same 15X-100X microscope with contour illumination.
- Higher magnification: ISM-DL302 covers 75X-504X. Sharper image: ISM-DL500 has a 5M sensor at 30X-200X.
Other sizes & versions in this series
- ISM-DL301-U – with Contour Illumination
- ISM-DL400
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and part size and the features you need to measure — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISM-DL300 |
Product Family: |
Optical and Video Inspection |
Supplier Category Code: |
B |
EAN: |
6928640396861 |
Package Weight: |
23.62 lb |
Package Length: |
18.9 in |
Package Width: |
14.17 in |
Package Height: |
16.54 in |
Feature 1: |
Magnification 15X~100X |
Feature 2: |
Sensor 1/2'' CMOS. Pixel 2M. |
Feature 3: |
Resolution 1920×1080 |
Feature 4: |
1080P high-definition image |
Feature 5: |
Built-in software without computer, operation by mouse |
Feature 6: |
Take pictures, saved to USB flash disk |
Feature 7: |
Measurement result can be exported to Excel |
Feature 8: |
Automatic white balance and exposure. Brightness, contrast ratio, gain are adjustable. |
