Description

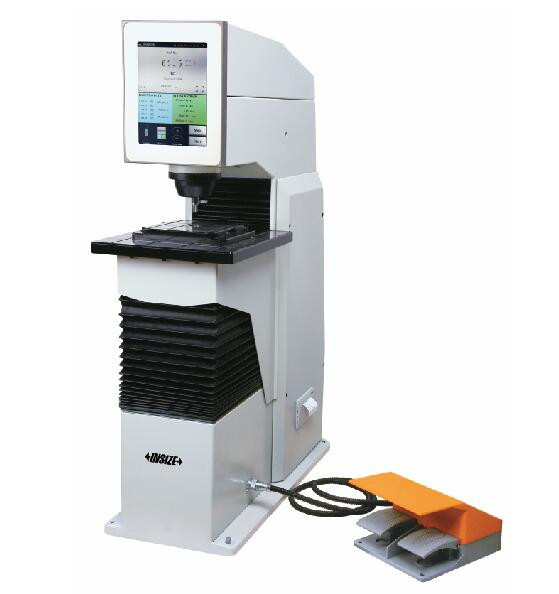

Insize ISH-RSR700-U – Automatic Digital Rockwell and Superficial Rockwell Hardness Tester
L. Dewitt's SKU #: ISH-RSR700-U | Mfr Part #: ISH-RSR700-UInsize ISH-RSR700-U is a fully automatic bench Rockwell and superficial Rockwell hardness tester with motor-driven loading and an LCD touch screen. It selects the test force from the chosen scale and saves results to a USB flash disk as Excel.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Test blocks, e.g. HDT-B-HRC1 (Rockwell) and HDT-B-HR30N2 (superficial) | Choose yours |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Scales HRA, HRB, HRC, HRD, HRF, HRG, HR15N/T, HR30N/T, HR45N/T with standard indenters
- HRE, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, HR15W/X/Y, HR30W/X/Y, HR45W/X/Y with optional indenter
- Preliminary and main test forces loaded automatically by electric motor (no weights)
- Test force selected automatically by hardness scale
- LCD touch screen
- Converts to other Rockwell scales, HV or HB
- Low and high limits
- Saves results to USB flash disk as Excel
- Corrects readings on curved workpieces
Technical Specifications
| Part Number | ISH-RSR700-U |
| Brand | Insize |
| Manufacturer Part Number | ISH-RSR700-U |
| Product Type | Automatic Digital Rockwell and Superficial Rockwell Hardness Tester |
| Scales | HRA, HRB, HRC, HRD, HRF, HRG, HR15N/T, HR30N/T, HR45N/T (more with optional indenters) |
| Loading | Electric motor, automatic |
| Display | LCD touch screen |
| Data Output | USB flash disk (Excel) |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 242.51 lb |
| Package Dimensions | 29.53IN L x 17.72IN W x 41.34IN H |
| UPC/EAN | 6940561923315 |
| Sold As | 1 Each |
What you'll also need
- Test blocks, e.g. HDT-B-HRC1 (Rockwell) and HDT-B-HR30N2 (superficial)
Choosing between options
- Regular Rockwell scales only? ISH-MRD200-U is an automatic digital Rockwell tester for HRA, HRB, HRC, HRD, HRF, HRG.
- Manual Rockwell and superficial tester: HDT-RSR100.
Other sizes & versions in this series
- ISH-MRD200-U – Convert to other Rockwell scales, HV or HB; Memory of 500 testing values for browsing and output
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the hardness scales you test and the size of your parts — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISH-RSR700-U |
Product Family: |
Testing and Specialty Instruments |
Supplier Category Code: |
B |
EAN: |
6940561923315 |
Package Weight: |
242.51 lb |
Package Length: |
29.53 in |
Package Width: |
17.72 in |
Package Height: |
41.34 in |
Feature 1: |
Hardness scale: HRA, HRB, HRC, HRD HRF, HRG, HR15N/T, HR30N/T, HR45N/T (with standard indenters), HRE, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, HR15W/X/Y, HR30W/X/Y, HR45W/X/Y (with optional indenter). |
Feature 2: |
Automatic testing, the preliminary and main test force are loaded automatically |
Feature 3: |
LCD touch screen, easy operation |
Feature 4: |
Convert to other Rockwell scales, HV or HB automatically |
Feature 5: |
Low and high limits. Insert USB flash disk, save the testing results as Excel. |
Feature 6: |
Self-correcting the hardness value for curved workpiece. |
Feature 7: |
Force loading by electric motor (without weights) |
Feature 8: |
The test force is selected automatically according to hardness scale |
