Description

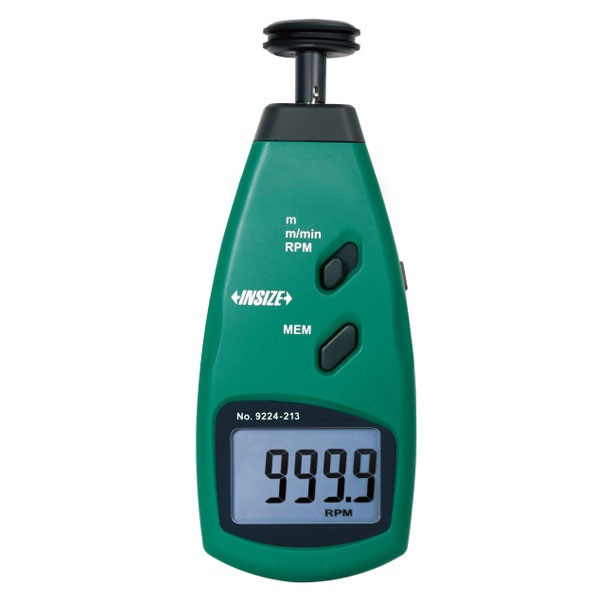

Insize 9224-213 – Contact Tachometer, 0.5-19999RPM/0.05-500M/min, 0.05-99999IN
L. Dewitt's SKU #: 9224-213 | Mfr Part #: 9224-213Insize 9224-213 is a contact tachometer measuring rotary speed (0.5-19999RPM), line speed (0.05-500M/min) and line length (0.05-99999IN).
Key Features
- Rotary speed 0.5-19999RPM
- Line speed 0.05-500M/min
- Line length 0.05-99999IN
- Saves max., min. and last value automatically; stores 96 readings in continuous measurement
- Backlit display
Technical Specifications
| Part Number | 9224-213 |
| Brand | Insize |
| Manufacturer Part Number | 9224-213 |
| Product Type | Contact Tachometer |
| Rotary Speed | 0.5-19999RPM |
| Line Speed | 0.05-500M/min |
| Line Length | 0.05-99999IN |
| Method | Contact |
| Memory | 96 readings |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.8 lb |
| Package Dimensions | 8.35IN L x 6.34IN W x 2.28IN H |
| UPC/EAN | 6974029772900 |
| Sold As | 1 Each |
Choosing between options
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the speed range you need — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
9224-213 |
Product Family: |
Testing and Specialty Instruments |
Supplier Category Code: |
A |
EAN: |
6974029772900 |
Package Weight: |
0.8 lb |
Package Length: |
8.35 in |
Package Width: |
6.34 in |
Package Height: |
2.28 in |
Feature 1: |
Can measure rotary speed, line speed and line length |
Feature 2: |
Automatically save the maximum value, minimum value and the last value, 96 data can be stored during continuous measurement |
Feature 3: |
With backlight display |
