Description

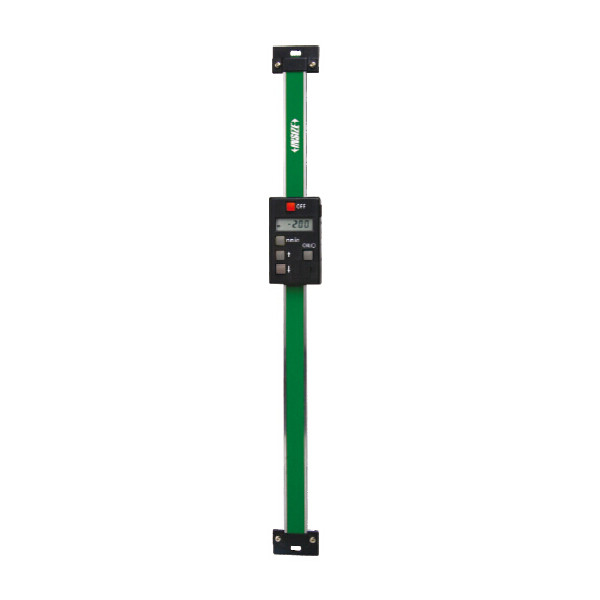

Insize 7102-800 – Digital Vertical Scale, 32IN/800MM
L. Dewitt's SKU #: 7102-800 | Mfr Part #: 7102-800Insize 7102-800 is a 32IN/800MM digital vertical scale reading to .0005IN/0.01MM, with a mounting bracket on the back for adding a digital readout to a vertical travel. ABS/INC and tolerance functions support incremental and go/no-go checks.
Key Features
- Length 32IN/800MM, resolution .0005IN/0.01MM
- Buttons: on/off, zero, inch/mm, ABS/INC, data hold, TOL, set
- ABS/INC for absolute and incremental measurement
- TOL for tolerance measurement
- LR44 battery; data output
- Stainless steel
- Bracket supplied for mounting on the back
Technical Specifications
| Part Number | 7102-800 |
| Brand | Insize |
| Manufacturer Part Number | 7102-800 |
| Product Type | Digital Vertical Scale |
| Range | 32IN/800MM |
| Resolution | .0005IN / 0.01MM |
| Battery | LR44 |
| Data Output | Yes (cable sold separately) |
| Material | Stainless steel |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 4.25 lb |
| Package Dimensions | 40.35IN L x 4.13IN W x 1.57IN H |
| UPC/EAN | 6928640321610 |
| Sold As | 1 Each |
What you'll also need
- Data output cable (sold separately)
Choosing between options
- Mounting on a horizontal travel? 7101-800A is the 32IN/800MM digital horizontal scale (CR2032 battery, on/off, zero and in/mm buttons).
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and scale length and how you will mount it — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
7102-800 |
Product Family: |
Measuring Tool Sets |
Supplier Category Code: |
A |
EAN: |
6928640321610 |
Package Weight: |
4.25 lb |
Package Length: |
40.35 in |
Package Width: |
4.13 in |
Package Height: |
1.57 in |
Feature 1: |
Resolution: .0005'/0.01mm. |
Feature 2: |
Buttons: on/off, zero, inch/mm, ABS/INC, data hold, TOL, set. |
Feature 3: |
ABS/INC is for absolute and incremental measurement. |
Feature 4: |
TOL is for tolerance measurement. |
Feature 5: |
Battery LR44. Made of stainless steel. |
Feature 6: |
Data output |
Feature 7: |
Supplied with bracket to be mounted on the back. |
Feature 8: |
Optional accessory: data output cable |
