Description

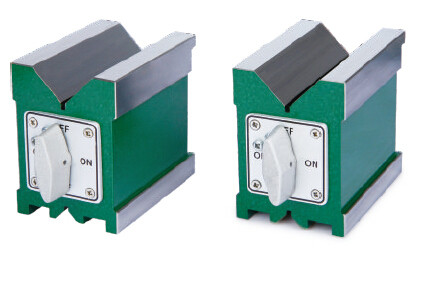

Insize 6889-3 – Magnetic V-Blocks, Pair, 5.9x3.0x3.9IN
L. Dewitt's SKU #: 6889-3 | Mfr Part #: 6889-3Insize 6889-3 is a matched pair of 5.9 x 3.0 x 3.9IN hardened magnetic V-blocks for holding round and square work for grinding, light milling, drilling and inspection. They can be used on cast iron and granite surface plates.
Key Features
- Size 5.9 x 3.0 x 3.9IN
- Matched pair
- Hardened; all working surfaces HRC60±2
- Magnetic force on top, bottom and both V grooves
- V groove on top for large shafts; V groove on bottom for small shafts
- For grinding, light milling, drilling and inspection of round and square work
- Suitable for cast iron and granite surface plates
Technical Specifications
| Part Number | 6889-3 |
| Brand | Insize |
| Manufacturer Part Number | 6889-3 |
| Product Type | Magnetic V-Blocks, Pair |
| Size | 5.9 x 3.0 x 3.9IN |
| Hardness | HRC60±2 |
| Magnetic Faces | Top, bottom, both V grooves |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 32.44 lb |
| Package Dimensions | 9.45IN L x 9.06IN W x 4.72IN H |
| UPC/EAN | 6928640320811 |
| Sold As | 1 Pair |
Choosing between options
- Need only one block? 6889-33 is the same size sold individually.
