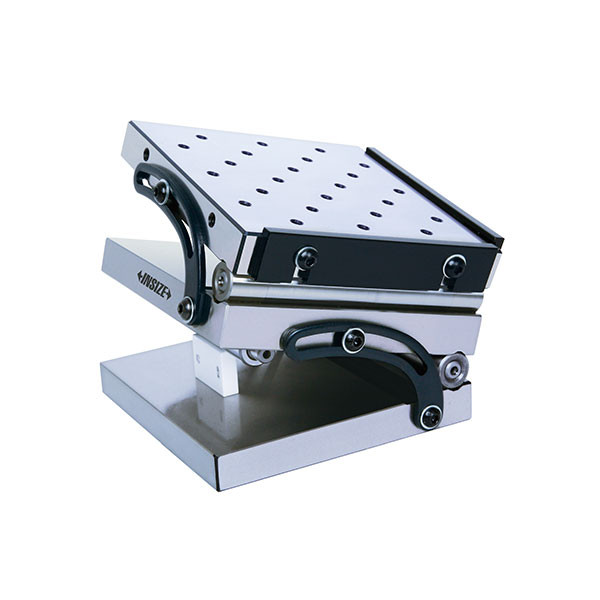

Insize 6536-5 – Compound Sine Table, 6x6IN
L. Dewitt's SKU #: 6536-5 | Mfr Part #: 6536-5Insize 6536-5 is a 6x6IN compound sine table that tilts in two planes with ±15 seconds angle accuracy, set with gage blocks, for grinding and inspecting compound angles.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Magnetic stand 6201-60 | Holds the indicator on the setup. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Table size 6x6IN
- Compound (two-plane) adjustment
- Angle accuracy ±15 seconds
- Alloy tool steel, hardness HRC58-60
Technical Specifications
| Part Number | 6536-5 |
| Brand | Insize |
| Manufacturer Part Number | 6536-5 |
| Product Type | Compound Sine Table |
| Table Size | 6x6IN |
| Type | Compound |
| Angle Accuracy | ±15 seconds |
| Material | Alloy tool steel |
| Hardness | HRC58-60 |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 30.86 lb |
| Package Dimensions | 6.3IN L x 6.3IN W x 4.72IN H |
| UPC/EAN | 6928640389405 |
| Sold As | 1 Each |
What you'll also need
- Gage blocks to set the angles
Choosing between options
- Single-plane angles: 6527-5 sine table (6x6IN).
