Description

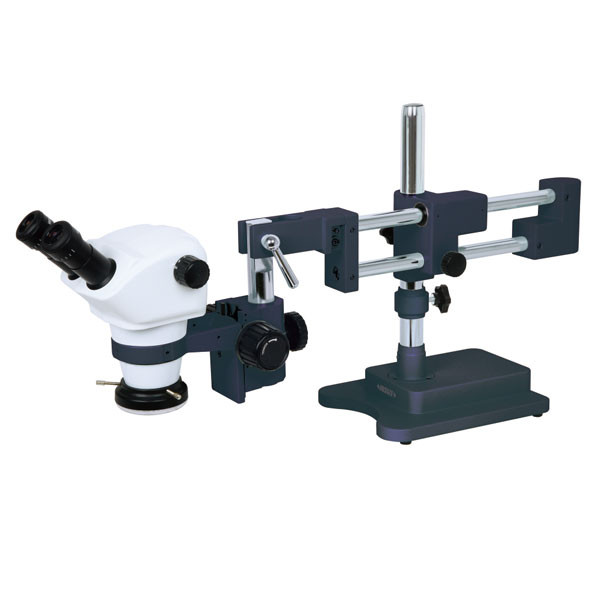

Insize 5106-M50 – Zoom Stereo Microscope (with Universal Stand, Binocular)
L. Dewitt's SKU #: 5106-M50 | Mfr Part #: 5106-M50Insize 5106-M50 is a binocular zoom stereo microscope on a universal stand, with a 0.8X-5X zoom objective and 10X eyepieces. The 4.53IN working distance and 11.81IN maximum workpiece height leave room to handle and rework parts under the lens.
Key Features
- Zoom objective 0.8X-5X, zoom ratio 1:6.3
- 10X eyepieces, view field .87IN DIA
- Pupil distance 2.17-2.95IN
- Diopter adjustment ±5 on both eyepieces
- Working distance 4.53IN
- Max workpiece height 11.81IN
- Adjustable reflected LED ring light
- Universal stand
Technical Specifications
| Part Number | 5106-M50 |
| Brand | Insize |
| Manufacturer Part Number | 5106-M50 |
| Product Type | Zoom Stereo Microscope (with Universal Stand, Binocular) |
| Objective | 0.8X-5X zoom |
| Zoom Ratio | 1:6.3 |
| Eyepiece | 10X, view field .87IN DIA |
| Viewing Head | Binocular |
| Working Distance | 4.53IN |
| Max Workpiece Height | 11.81IN |
| Illumination | LED ring light (reflected) |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 46.3 lb |
| Package Dimensions | 31.1IN L x 9.06IN W x 16.93IN H |
| UPC/EAN | 6940561960396 |
| Sold As | 1 Each |
Choosing between options
Other sizes & versions in this series
- 5106-M50T – Trinocular)
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the parts you inspect and the magnification you need — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
5106-M50 |
Product Family: |
Optical and Video Inspection |
Supplier Category Code: |
B |
EAN: |
6940561960396 |
Package Weight: |
46.3 lb |
Package Length: |
31.1 in |
Package Width: |
9.06 in |
Package Height: |
16.93 in |
Feature 1: |
Eyepiece 10X (view field .87' DIA) |
Feature 2: |
Objective 0.8X~5X(zoom) |
Feature 3: |
Zoom ratio 1'6.3 |
Feature 4: |
Pupil distance 2.17~2.95' |
Feature 5: |
Diopter adjustment ±5 diopter(two eyepieces) |
Feature 6: |
Working distance of objective 4.53' |
Feature 7: |
Max. workpiece height 11.81' |
Feature 8: |
Illumination: adjustable reflected LED ring light |
