Description

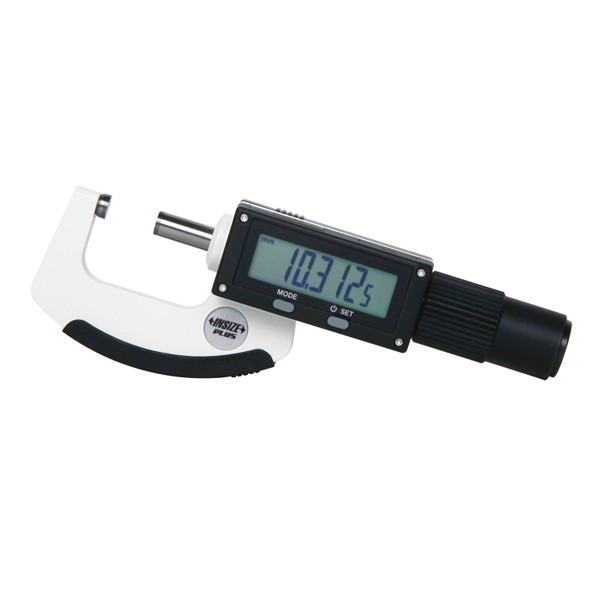

Insize 3661-130 – High Precision Non-Rotating Spindle Electronic Micrometer, 100-130MM/3.94-5.12IN
L. Dewitt's SKU #: 3661-130 | Mfr Part #: 3661-130Insize 3661-130 is a 100-130MM/3.94-5.12IN high precision electronic micrometer with a non-rotating spindle and resolution down to 0.0005MM/.00002IN. The 2MM-per-turn quick feed and 0.5µm repeatability suit precision OD measurement of cylindrical parts in inspection.
Key Features
- Range 100-130MM/3.94-5.12IN
- Resolution 0.01MM/.0005IN, 0.001MM/.00005IN and 0.0005MM/.00002IN
- Repeatability 0.5µm
- Measuring face flatness 0.3µm, parallelism 0.5µm
- Non-rotating spindle, suitable for cylindrical parts
- Quick feed: one turn of the sleeve or ratchet stop moves the spindle 2MM
- Measuring force 5-10N
- Ratchet stop
- Carbide measuring faces
Technical Specifications
| Part Number | 3661-130 |
| Brand | Insize |
| Manufacturer Part Number | 3661-130 |
| Product Type | High Precision Non-Rotating Spindle Electronic Micrometer |
| Range | 100-130MM/3.94-5.12IN |
| Resolution | 0.01MM / .0005IN, 0.001MM / .00005IN, 0.0005MM / .00002IN |
| Repeatability | 0.5µm |
| Flatness of Measuring Faces | 0.3µm |
| Parallelism of Measuring Faces | 0.5µm |
| Measuring Force | 5-10N |
| Spindle | Non-rotating |
| Measuring Faces | Carbide |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.97 lb |
| Package Dimensions | 4.41IN L x 16.54IN W x 13.78IN H |
| UPC/EAN | 6940561933871 |
| Sold As | 1 Each |
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the diameter range you need to measure — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3661-130 |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6940561933871 |
Package Weight: |
1.97 lb |
Package Length: |
4.41 in |
Package Width: |
16.54 in |
Package Height: |
13.78 in |
Feature 1: |
Resolution 0.01mm/.0005', 0.001mm/0.00005', 0.0005mm/.00002'. |
Feature 2: |
Repeatability 0.5um. Measuring force 5-10N. |
Feature 3: |
Flatness of measuring faces 0.3um. Parallelism of measuring faces 0.5um. |
Feature 4: |
Ratchet stop |
Feature 5: |
Non-rotating spindle, suitable for cylinders. |
Feature 6: |
Quick measurement: one turn of sleeve or ratchet stop makes 2mm spindle feed. |
Feature 7: |
Carbide measuring faces |
