Description

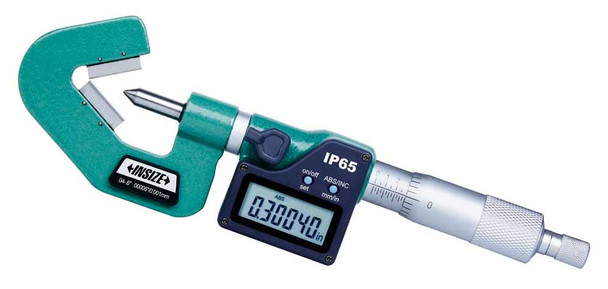

Insize 3590-153E – Digital V-Anvil Micrometer, 3 Flutes, .04-.6IN/1-15MM
L. Dewitt's SKU #: 3590-153E | Mfr Part #: 3590-153EInsize 3590-153E is a .04-.6IN/1-15MM digital V-anvil micrometer for parts and cutting tools with 3 flutes, reading to .00005IN/0.001MM. The V-anvil lets you measure the diameter of taps, reamers and end mills with odd-numbered flutes; IP65 sealed with data output.
Key Features
- Range .04-.6IN/1-15MM, resolution .00005IN/0.001MM
- For 3-flute parts and cutting tools (taps, reamers, end mills)
- IP65 dust- and water-resistant
- Buttons: on/off, set, inch/mm, ABS/INC
- Data output (cable sold separately)
- LR44 battery with auto power off
- Ratchet stop for consistent measuring force
- Carbide measuring faces
- Setting standard included
Technical Specifications
| Part Number | 3590-153E |
| Brand | Insize |
| Manufacturer Part Number | 3590-153E |
| Product Type | Digital V-Anvil Micrometer, 3 Flutes |
| Range | .04-.6IN/1-15MM |
| Resolution | .00005IN / 0.001MM |
| Flutes | 3 |
| Protection Rating | IP65 |
| Data Output | Yes (cable sold separately) |
| Battery | LR44 |
| Measuring Faces | Carbide |
| Setting Standard | Included |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.43 lb |
| Package Dimensions | 8.9IN L x 5.04IN W x 1.69IN H |
| UPC/EAN | 6928640356100 |
| Sold As | 1 Each |
What you'll also need
- Data output cable (sold separately)
Choosing between options
- No electronics needed? 3290-063 is a mechanical .04-.6IN V-anvil micrometer, graduation .0001IN.
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and tool diameter range and number of flutes — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3590-153E |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6928640356100 |
Package Weight: |
1.43 lb |
Package Length: |
8.9 in |
Package Width: |
5.04 in |
Package Height: |
1.69 in |
Feature 1: |
Resolution .00005'/0.001mm. |
Feature 2: |
Measure the diameter of parts or cutting tools with odd grooves, such as tapes, reamers and end mills. |
Feature 3: |
IP65 dust/waterproof. Button function: on/off, set, inch/mm, ABS/INC. |
Feature 4: |
Data output. LR44 battery, automatic power off. |
Feature 5: |
Ratchet stop. |
Feature 6: |
Carbide measuring faces. |
Feature 7: |
Supplied with setting standards. |
Feature 8: |
Optional accessory: data output cable. |
