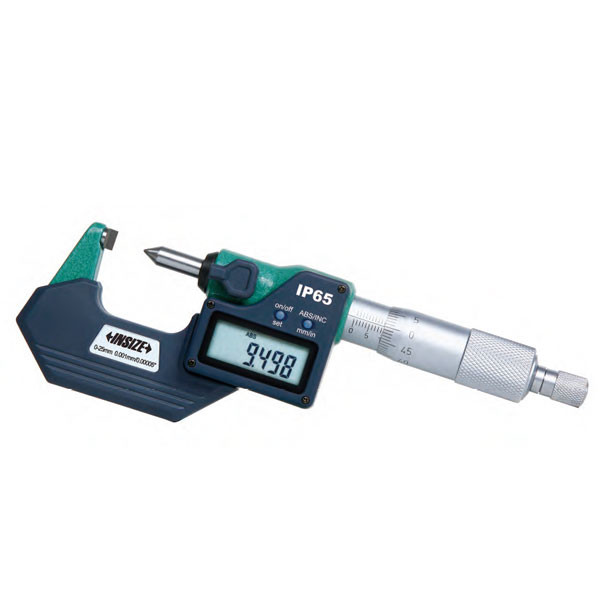

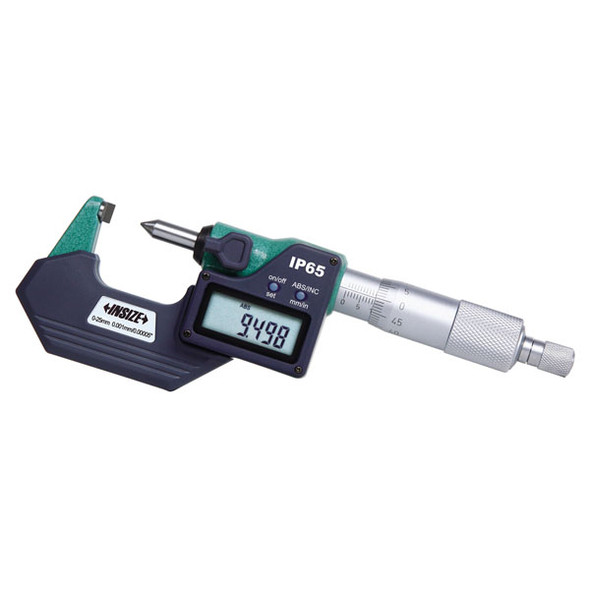

Insize 3566-25DA – Electronic Crimp Height Micrometer, 0-25MM/0-1IN, 0.001MM/.00005IN
L. Dewitt's SKU #: 3566-25DA | Mfr Part #: 3566-25DAInsize 3566-25DA is a 0-25MM/0-1IN digital crimp height micrometer reading to 0.001MM/.00005IN, for measuring the crimp height of crimped contacts. IP65 sealed, with data output for logging crimp checks.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Micrometer stand 6301 | Holds the micrometer so both hands are free for the part. | Add to cart |
| Data output cable 7302-30 | Sends digital micrometer readings to Excel or SPC software as keyboard input. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 0-25MM/0-1IN, resolution 0.001MM/.00005IN
- Measures the height of crimped contacts
- IP65 dust- and water-resistant
- Buttons: on/off, set, inch/mm, ABS/INC
- Data output (cable sold separately)
- LR44 battery with auto power off
- Ratchet stop for consistent measuring force
Technical Specifications
| Part Number | 3566-25DA |
| Brand | Insize |
| Manufacturer Part Number | 3566-25DA |
| Product Type | Electronic Crimp Height Micrometer |
| Range | 0-25MM/0-1IN |
| Resolution | 0.001MM / .00005IN |
| Protection Rating | IP65 |
| Data Output | Yes (cable sold separately) |
| Battery | LR44 |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.76 lb |
| Package Dimensions | 6.34IN L x 3.7IN W x 1.26IN H |
| UPC/EAN | 6940561959451 |
| Sold As | 1 Each |
