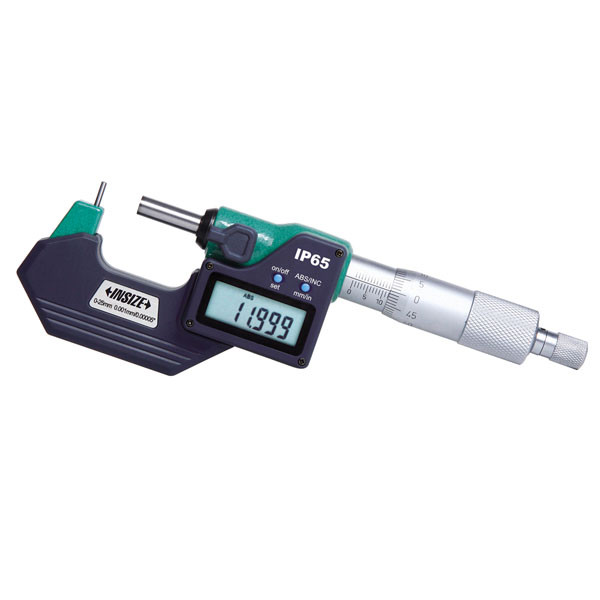

Insize 3561-25DE – Digital Cylindrical Anvil Tube Micrometer, Type D, 0-1IN/0-25MM
L. Dewitt's SKU #: 3561-25DE | Mfr Part #: 3561-25DEInsize 3561-25DE is a 0-1IN/0-25MM digital tube micrometer with a cylindrical anvil, type D, reading to .00005IN/0.001MM, for measuring the wall thickness of tubes. IP65 sealed with a carbide spindle tip and data output.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Micrometer stand 6301 | Holds the micrometer so both hands are free for the part. | Add to cart |
| Data output cable 7302-30 | Sends digital micrometer readings to Excel or SPC software as keyboard input. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 0-1IN/0-25MM, resolution .00005IN/0.001MM
- Measures tube wall thickness
- IP65 dust- and water-resistant
- Buttons: on/off, set, inch/mm, ABS/INC
- Data output (cable sold separately)
- LR44 battery with auto power off
- Ratchet stop for consistent measuring force
- Carbide spindle tip
Technical Specifications
| Part Number | 3561-25DE |
| Brand | Insize |
| Manufacturer Part Number | 3561-25DE |
| Product Type | Digital Cylindrical Anvil Tube Micrometer, Type D |
| Range | 0-1IN/0-25MM |
| Resolution | .00005IN / 0.001MM |
| Protection Rating | IP65 |
| Data Output | Yes (cable sold separately) |
| Battery | LR44 |
| Spindle Tip | Carbide |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.23 lb |
| Package Dimensions | 7.68IN L x 4.61IN W x 1.69IN H |
| UPC/EAN | 6928640355974 |
| Sold As | 1 Each |
What you'll also need
- Data output cable (sold separately)
Choosing between options
Other sizes & versions in this series
- 3561-25E – 0-1IN/0-25MM, Type A
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the tube size (ID) and wall thickness — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3561-25DE |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6928640355974 |
Package Weight: |
1.23 lb |
Package Length: |
7.68 in |
Package Width: |
4.61 in |
Package Height: |
1.69 in |
Feature 1: |
Resolution .00005'/0.001mm. |
Feature 2: |
Measure wall thickness of tubes. |
Feature 3: |
IP65 dust/waterproof. |
Feature 4: |
Button function: on/off, set, inch/mm, ABS/INC. |
Feature 5: |
Data output. |
Feature 6: |
LR44 battery, automatic power off. |
Feature 7: |
Ratchet stop. Carbide spindle tip. |
Feature 8: |
Optional accessory: data output cable. |
