Description

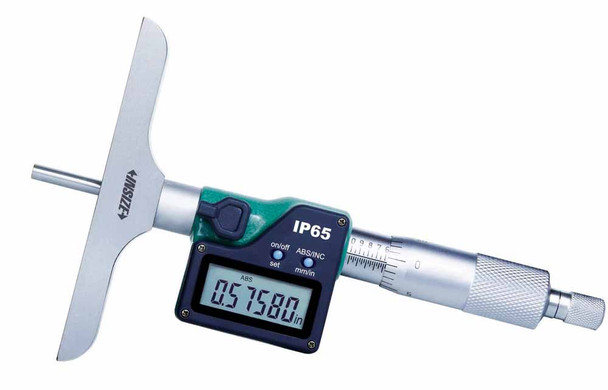

Insize 3540-300E – Digital Depth Micrometer, IP65, 0-12IN/0-300MM
L. Dewitt's SKU #: 3540-300E | Mfr Part #: 3540-300EInsize 3540-300E is a 0-12IN/0-300MM digital depth micrometer reading to .00005IN/0.001MM, for measuring hole, slot and step depths. IP65 sealed, with flat-end rods and data output for SPC.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Micrometer stand 6301 | Holds the micrometer so both hands are free for the part. | Add to cart |
| Data output cable 7302-30 | Sends digital micrometer readings to Excel or SPC software as keyboard input. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 0-12IN/0-300MM, resolution .00005IN/0.001MM
- Micrometer head accuracy ±.00012IN
- Rod accuracy ±[.001 + .0005(L/3)]IN, L = measuring range in inches
- Rods with flat end
- IP65 dust- and water-resistant
- Buttons: on/off, set, inch/mm, ABS/INC
- Data output (cable sold separately)
- LR44 battery with auto power off
- Ratchet stop for consistent measuring force
Technical Specifications
| Part Number | 3540-300E |
| Brand | Insize |
| Manufacturer Part Number | 3540-300E |
| Product Type | Digital Depth Micrometer, IP65 |
| Range | 0-12IN/0-300MM |
| Resolution | .00005IN / 0.001MM |
| Micrometer Head Accuracy | ±.00012IN |
| Rod Accuracy | ±[.001 + .0005(L/3)]IN |
| Protection Rating | IP65 |
| Data Output | Yes (cable sold separately) |
| Battery | LR44 |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 3.02 lb |
| Package Dimensions | 13.31IN L x 7.91IN W x 1.73IN H |
| UPC/EAN | 6928640326707 |
| Sold As | 1 Each |
What you'll also need
- Data output cable (sold separately)
Choosing between options
- No electronics needed? 3241-12 is a mechanical 0-12IN depth micrometer, graduation .001IN, with a 3.996 x .669IN base.
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the depth range you need — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3540-300E |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6928640326707 |
Package Weight: |
3.02 lb |
Package Length: |
13.31 in |
Package Width: |
7.91 in |
Package Height: |
1.73 in |
Feature 1: |
Resolution: .00005'/0.001mm. |
Feature 2: |
Micrometer head accuracy: ±.00012'. |
Feature 3: |
Rod accuracy: ±[.001+.0005(L/3)]', L is the measuring range in inch. |
Feature 4: |
Button function: on/off, set, inch/mm, ABS/INC. |
Feature 5: |
IP65 dust/waterproof. |
Feature 6: |
Data output. LR44 battery, automatic power off. |
Feature 7: |
Rods with flat end. Ratchet stop. |
Feature 8: |
Optional accessory: data output cable. |
