Description

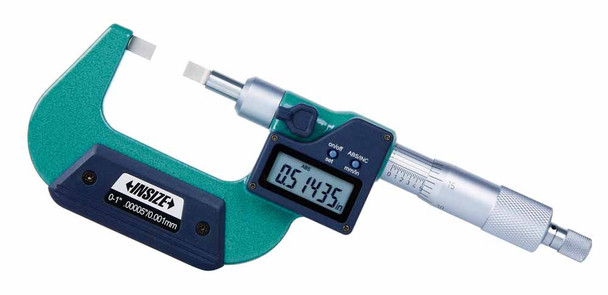

Insize 3532-75E – Digital Blade Micrometer, 2-3IN/50-75MM
L. Dewitt's SKU #: 3532-75E | Mfr Part #: 3532-75EInsize 3532-75E is a 2-3IN/50-75MM digital blade micrometer reading to .00005IN/0.001MM, for measuring groove diameters on shafts and keyways. Thin blades on a non-rotating spindle enter narrow grooves and stay aligned while you measure.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Micrometer stand 6301 | Holds the micrometer so both hands are free for the part. | Add to cart |
| Data output cable 7302-30 | Sends digital micrometer readings to Excel or SPC software as keyboard input. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 2-3IN/50-75MM, resolution .00005IN/0.001MM
- Measures groove diameters of shafts and keyways
- Buttons: on/off, set, inch/mm, ABS/INC
- Data output (cable sold separately)
- LR44 battery with auto power off
- Non-rotating spindle
- Ratchet stop for consistent measuring force
- Setting standard included
Technical Specifications
| Part Number | 3532-75E |
| Brand | Insize |
| Manufacturer Part Number | 3532-75E |
| Product Type | Digital Blade Micrometer |
| Range | 2-3IN/50-75MM |
| Resolution | .00005IN / 0.001MM |
| Data Output | Yes (cable sold separately) |
| Battery | LR44 |
| Spindle | Non-rotating |
| Setting Standard | Included |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 2.81 lb |
| Package Dimensions | 12.09IN L x 6.97IN W x 1.73IN H |
| UPC/EAN | 6928640327681 |
| Sold As | 1 Each |
What you'll also need
- Data output cable (sold separately)
Choosing between options
- No electronics needed? 3232-3 is the mechanical 2-3IN blade micrometer, graduation .0001IN.
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the groove diameter and groove width — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3532-75E |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6928640327681 |
Package Weight: |
2.81 lb |
Package Length: |
12.09 in |
Package Width: |
6.97 in |
Package Height: |
1.73 in |
Feature 1: |
Resolution .00005'/0.001mm. |
Feature 2: |
Measure the groove diameter of shafts and keyways. |
Feature 3: |
Non-rotating spindle. |
Feature 4: |
Button function: on/off, set, inch/mm, ABS/INC |
Feature 5: |
Data output. LR44 battery, automatic power off. |
Feature 6: |
Ratchet stop. |
Feature 7: |
Supplied with setting standards (except 0-1'/0-25mm). |
Feature 8: |
Optional accessory: data output cable. |
