Description

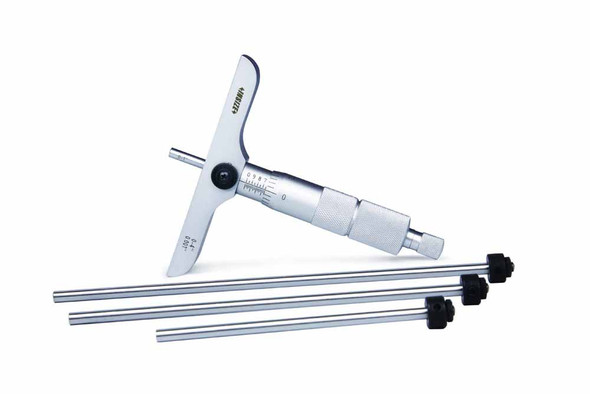

Insize 3241-100 – Depth Micrometer, 0-100MM, Graduation 0.01MM, Base 101.5×17MM
L. Dewitt's SKU #: 3241-100 | Mfr Part #: 3241-100Insize 3241-100 is a 0-100MM depth micrometer on a 101.5 x 17MM base, graduation 0.01MM, for measuring hole, slot and step depths.
Key Features
- Range 0-100MM, graduation 0.01MM
- Base 101.5 x 17MM
- Micrometer head accuracy ±3µm
- Rod accuracy ±(2 + L/75)µm, L = measuring range in mm
- Rods with flat end
- Ratchet stop for consistent measuring force
- Meets DIN 863-2
Technical Specifications
| Part Number | 3241-100 |
| Brand | Insize |
| Manufacturer Part Number | 3241-100 |
| Product Type | Depth Micrometer |
| Range | 0-100MM |
| Graduation | 0.01MM |
| Base | 101.5 x 17MM |
| Head Accuracy | ±3µm |
| Rod Accuracy | ±(2 + L/75)µm |
| Standard | DIN 863-2 |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.75 lb |
| Package Dimensions | 10.04IN L x 5.83IN W x 1.69IN H |
| UPC/EAN | 6928640303715 |
| Sold As | 1 Each |
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and depth range and base size — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3241-100 |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6928640303715 |
Package Weight: |
1.75 lb |
Package Length: |
10.04 in |
Package Width: |
5.83 in |
Package Height: |
1.69 in |
Feature 1: |
Meet DIN863-2 |
Feature 2: |
Micrometer head accuracy: +/-3μm. |
Feature 3: |
Rod accuracy: +/-(2+L/75)μm, L is the measuring range in mm. |
Feature 4: |
Rods with flat end. |
Feature 5: |
Ratchet stop. |
