Description

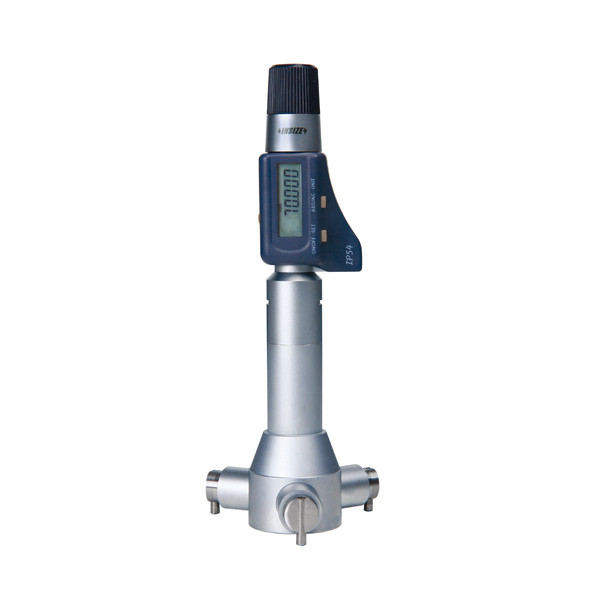

Insize 3128-10 – Digital Wide Range Three Points Internal Micrometer, IP54, 6-10IN/152-254MM
L. Dewitt's SKU #: 3128-10 | Mfr Part #: 3128-10Insize 3128-10 is a digital wide-range three-point internal micrometer covering bores of 6-10IN/152-254MM with one tool, reading to .00005IN/0.001MM. It is supplied with extension rods and a setting ring, and has data output for SPC collection.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Micrometer stand 6301 | Holds the micrometer so both hands are free for the part. | Add to cart |
| Data output cable 7302-30 | Sends digital micrometer readings to Excel or SPC software as keyboard input. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 6-10IN/152-254MM, resolution .00005IN/0.001MM
- Three-point contact in the bore
- IP54 dust- and water-resistant
- Buttons: on/off, set, inch/mm, ABS/INC
- Data output; LR44 battery with auto power off
- Carbide measuring faces
- Ratchet stop for consistent measuring force
- Extension rods included
- Setting ring included
Technical Specifications
| Part Number | 3128-10 |
| Brand | Insize |
| Manufacturer Part Number | 3128-10 |
| Product Type | Digital Wide Range Three Points Internal Micrometer, IP54 |
| Range | 6-10IN / 152-254MM |
| Resolution | .00005IN / 0.001MM |
| Contact Points | Three |
| Protection Rating | IP54 |
| Measuring Faces | Carbide |
| Battery | LR44 |
| Data Output | Yes (cable sold separately) |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 25.28 lb |
| Package Dimensions | 22.44IN L x 14.17IN W x 11.22IN H |
| UPC/EAN | 6928640356698 |
| Sold As | 1 Each |
What you'll also need
- Data output cable (sold separately)
Choosing between options
- Don't need a digital reading? 3228-10 is the mechanical wide-range three-point internal micrometer for 6-10IN, graduation .0001IN.
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and bore diameter range and whether you need a data cable — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3128-10 |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6928640356698 |
Package Weight: |
25.28 lb |
Package Length: |
22.44 in |
Package Width: |
14.17 in |
Package Height: |
11.22 in |
Feature 1: |
Resolution .00005'/0.001mm. |
Feature 2: |
IP54 dust/waterproof. |
Feature 3: |
Buttons: on/off, set, inch/mm, ABS/INC. |
Feature 4: |
Data output. LR44 battery, automatic power off. |
Feature 5: |
Carbide measuring faces. Ratchet stop. |
Feature 6: |
Supplied with extension rods. |
Feature 7: |
Setting rings are included (except part no. 3128-12). |
Feature 8: |
Optional accessory: data output cable. |
