Description
Insize 3127-E44 – Digital Three Points Internal Micrometer, IP65, 2-4IN/51-101MM
L. Dewitt's SKU #: 3127-E44 | Mfr Part #: 3127-E44Insize 3127-E44 is a digital three-point internal micrometer for measuring bore diameters of 2-4IN/51-101MM, reading to .00005IN/0.001MM. It is sealed to IP65 and has data output, so it suits hole checks at the machine where readings go to a computer or SPC software.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Micrometer stand 6301 and clamp 6301-2 | Choose yours | |
| Data output cable 7302-30 | Sends digital micrometer readings to Excel or SPC software as keyboard input. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 2-4IN/51-101MM, resolution .00005IN/0.001MM
- Three-point contact in the bore
- IP65 dust- and water-resistant
- Buttons: on/off, set, inch/mm, ABS/INC
- Data output
- LR44 battery with auto power off
- Ratchet stop for consistent measuring force
Technical Specifications
| Part Number | 3127-E44 |
| Brand | Insize |
| Manufacturer Part Number | 3127-E44 |
| Product Type | Digital Three Points Internal Micrometer, IP65 |
| Range | 2-4IN / 51-101MM |
| Resolution | .00005IN / 0.001MM |
| Contact Points | Three |
| Protection Rating | IP65 |
| Battery | LR44 |
| Data Output | Yes (cable sold separately) |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 20.88 lb |
| Package Dimensions | 14.57IN L x 11.42IN W x 6.69IN H |
| UPC/EAN | 6928640356513 |
| Sold As | 1 Each |
What you'll also need
- Data output cable (sold separately)
- Setting ring, Insize 6313 series, to zero the micrometer
- Micrometer stand 6301 and clamp 6301-2
Choosing between options

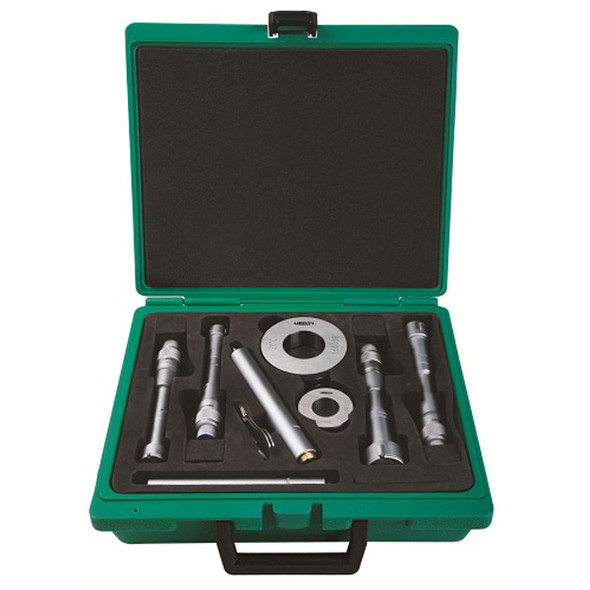

- Don't need a digital readout or data output? 3227-E44 is the mechanical three-point internal micrometer for the same 2-4IN range, graduation .0002IN.
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and bore diameter and whether you need a setting ring, data cable or stand — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3127-E44 |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6928640356513 |
Package Weight: |
20.88 lb |
Package Length: |
14.57 in |
Package Width: |
11.42 in |
Package Height: |
6.69 in |
Feature 1: |
Resolution .00005'/0.001mm. |
Feature 2: |
IP65 dust/waterproof. |
Feature 3: |
Buttons: on/off, set, inch/mm, ABS/INC. |
Feature 4: |
Data output. |
Feature 5: |
LR44 battery, automatic power off. |
Feature 6: |
Ratchet stop. |
Feature 7: |
Optional accessary: data output cable, setting ring (part no. 6313), micrometer stand and clamp (part no. 6301 and 6301-2). |
