Description

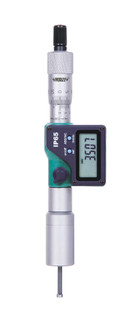

Insize 3127-E028 – Digital Two Points Internal Micrometer, IP65, .24-.28/6-7MM
L. Dewitt's SKU #: 3127-E028 | Mfr Part #: 3127-E028Insize 3127-E028 is a digital two-point internal micrometer for measuring bore diameters of .24-.28IN/6-7MM, reading to .00005IN/0.001MM. It is sealed to IP65 and has data output, so it suits hole checks at the machine where readings go to a computer or SPC software.
Key Features
- Range .24-.28IN/6-7MM, resolution .00005IN/0.001MM
- Two-point contact in the bore
- IP65 dust- and water-resistant
- Buttons: on/off, set, inch/mm, ABS/INC
- Data output
- LR44 battery with auto power off
- Ratchet stop for consistent measuring force
Technical Specifications
| Part Number | 3127-E028 |
| Brand | Insize |
| Manufacturer Part Number | 3127-E028 |
| Product Type | Digital Two Points Internal Micrometer, IP65 |
| Range | .24-.28IN / 6-7MM |
| Resolution | .00005IN / 0.001MM |
| Contact Points | Two |
| Protection Rating | IP65 |
| Battery | LR44 |
| Data Output | Yes (cable sold separately) |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.45 lb |
| Package Dimensions | 10.04IN L x 5.83IN W x 1.69IN H |
| UPC/EAN | 6940561954524 |
| Sold As | 1 Each |
What you'll also need
- Data output cable (sold separately)
- Setting ring, Insize 6313 series, to zero the micrometer
- Micrometer stand 6301 and clamp 6301-2
Choosing between options

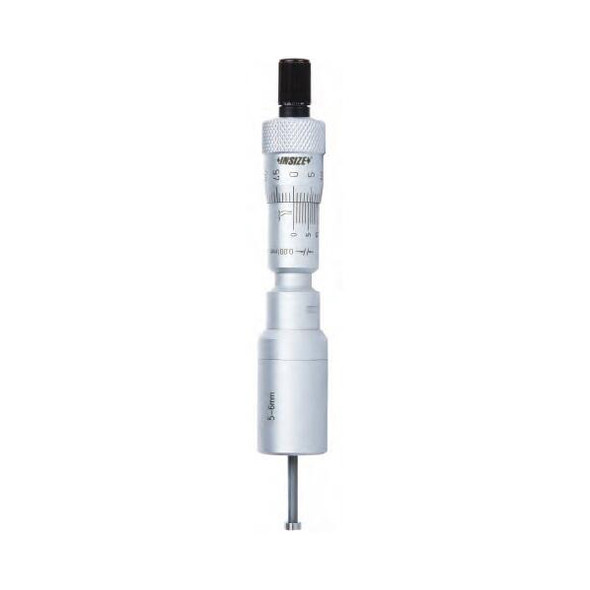

- Don't need a digital readout or data output? 3227-E028 is the mechanical two-point internal micrometer for the same .24-.28IN range, graduation .0001IN.
Other sizes & versions in this series
- 3127-E01 – .08-.1IN/2-2.5MM
- 3127-E02 – .16-.2IN/4-5MM
- 3127-E012 – .1-.12IN/2.5-3MM
- 3127-E016 – .12-.16IN/3-4MM
- 3127-E024 – .2-.24IN/5-6MM
- 3127-E0122 – .08-.12IN/2-3MM
- 3127-E0282 – .12-.28IN/3-7MM
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and bore diameter and whether you need a setting ring, data cable or stand — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3127-E028 |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6940561954524 |
Package Weight: |
1.45 lb |
Package Length: |
10.04 in |
Package Width: |
5.83 in |
Package Height: |
1.69 in |
Feature 1: |
Resolution .00005'/0.001mm |
Feature 2: |
IP65 dust/waterproof. |
Feature 3: |
Buttons: on/off, set, inch/mm, ABS/INC. |
Feature 4: |
Data output. |
Feature 5: |
LR44 battery, automatic power off. |
Feature 6: |
Ratchet stop. |
Feature 7: |
Optional accessary: data output cable, setting ring (part no. 6313), micrometer stand and clamp (part no. 6301 and 6301-2). |
