Description

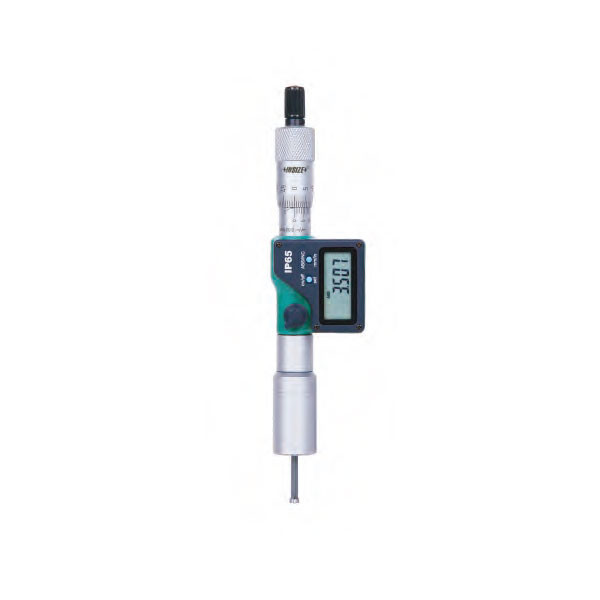

Insize 3127-4 – Electronic Three Points Internal Micrometer, IP65, 3-4MM/0.12-0.16IN
L. Dewitt's SKU #: 3127-4 | Mfr Part #: 3127-4Insize 3127-4 is a digital three-point internal micrometer for measuring bore diameters of 3-4MM/0.12-0.16IN, reading to .00005IN/0.001MM. It is sealed to IP65 and has data output, so it suits hole checks at the machine where readings go to a computer or SPC software.
Key Features
- Range 3-4MM/0.12-0.16IN, resolution .00005IN/0.001MM
- Three-point contact in the bore
- IP65 dust- and water-resistant
- Buttons: on/off, set, inch/mm, ABS/INC
- Data output
- LR44 battery with auto power off
- Ratchet stop for consistent measuring force
Technical Specifications
| Part Number | 3127-4 |
| Brand | Insize |
| Manufacturer Part Number | 3127-4 |
| Product Type | Electronic Three Points Internal Micrometer, IP65 |
| Range | 3-4MM / 0.12-0.16IN |
| Resolution | .00005IN / 0.001MM |
| Contact Points | Three |
| Protection Rating | IP65 |
| Battery | LR44 |
| Data Output | Yes (cable sold separately) |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.42 lb |
| Package Dimensions | 10.04IN L x 5.83IN W x 1.69IN H |
| UPC/EAN | 6928640309311 |
| Sold As | 1 Each |
What you'll also need
Choosing between options
- Same 3-4MM/.12-.16IN bore in the inch-first E series: 3127-E016 (two-point, IP65, data output).
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and bore diameter and whether you need a setting ring, data cable or stand — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3127-4 |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6928640309311 |
Package Weight: |
1.42 lb |
Package Length: |
10.04 in |
Package Width: |
5.83 in |
Package Height: |
1.69 in |
Feature 1: |
Resolution 0.001mm/.00005' |
Feature 2: |
IP65 dust/waterproof |
Feature 3: |
Buttons: on/off, set, mm/inch, ABS/INC. Data output. |
Feature 4: |
LR44 battery, automatic power off |
Feature 5: |
Ratchet stop |
Feature 6: |
Optional accessary: data output cable (code 7315-30, 7302-30), setting ring (code 6312), micrometer stand and clamp (code 6301 and 6301-2) |
