Description

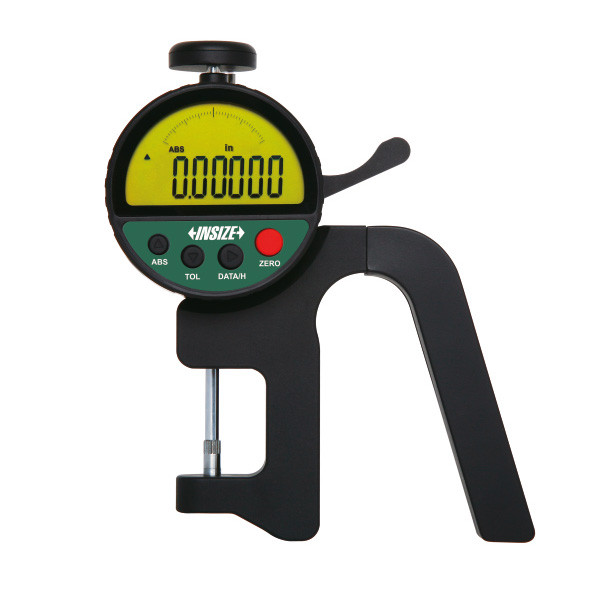

Insize 2879-101 – High Precision Digital Thickness Gage, 0-.4IN/0-10MM, .00005IN/0.001MM
L. Dewitt's SKU #: 2879-101 | Mfr Part #: 2879-101Insize 2879-101 is a high precision digital thickness gage for 0-.4IN/0-10MM with .00002IN/0.0005MM resolution, ±.00006IN accuracy and .00002IN repeatability. Low .11-.22lbf measuring force and digital plus analog display suit close-tolerance thickness inspection.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 0-.4IN/0-10MM, resolution .00002IN/0.0005MM
- Accuracy ±.00006IN (±0.0015MM)
- Repeatability .00002IN
- Absolute encoder: original data kept after power off
- Functions: on/off, zero, tolerance, absolute/incremental, max/min/TIR, data preset, mm/in, data output, data hold
- Measuring force .11-.22lbf
- Digital and analog display
- Rechargeable battery, 12 hours continuous use
Technical Specifications
| Part Number | 2879-101 |
| Brand | Insize |
| Manufacturer Part Number | 2879-101 |
| Product Type | High Precision Digital Thickness Gage |
| Range | 0-.4IN / 0-10MM |
| Resolution | .00002IN / 0.0005MM |
| Accuracy | ±.00006IN |
| Repeatability | .00002IN |
| Measuring Force | .11-.22lbf |
| Power | Rechargeable battery |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.32 lb |
| Package Dimensions | 12.91IN L x 11.3IN W x 3.62IN H |
| UPC/EAN | 6940561965995 |
| Sold As | 1 Each |
Choosing between options
- Coarser .00005IN/0.001MM resolution: 2879-10 (±.0001IN).
Other sizes & versions in this series
- 2879-10 – 0-.4IN/0-10MM
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and thickness range and the tolerance you need to hold — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2879-101 |
Product Family: |
Gages and Reference Tools |
Supplier Category Code: |
A |
EAN: |
6940561965995 |
Package Weight: |
1.32 lb |
Package Length: |
12.91 in |
Package Width: |
11.3 in |
Package Height: |
3.62 in |
Feature 1: |
Resolution .00002'/0.0005mm |
Feature 2: |
Accuracy ±.00006' |
Feature 3: |
Repeatability .00002' |
Feature 4: |
Absolute encoder, the original data remains after power off |
Feature 5: |
Button function: on/off, zero, tolerance, absolute/incremental measurement, max.min./TIR, data preset, mm/in, data output, data hold |
Feature 6: |
Meauring force .11-.22lbf |
Feature 7: |
Reading in digital and analog |
Feature 8: |
Power: rechargeable battery, for 12 hours continuous working |
