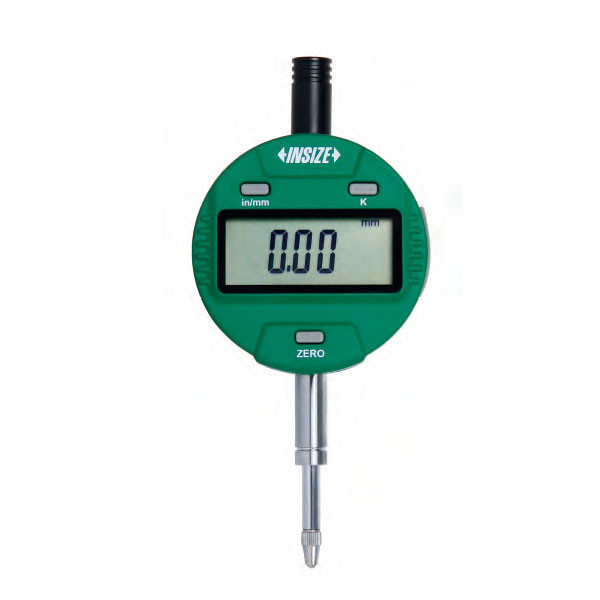

Insize 2501-10E – Adjustable Coefficient Digital Indicator, Lug Back, .5/12.7MM
L. Dewitt's SKU #: 2501-10E | Mfr Part #: 2501-10EInsize 2501-10E is a .5IN/12.7MM digital indicator whose display reading equals a coefficient you set (0 to 9.9999) times the spindle movement. Use it on fixtures and lever gages where the indicator must read the part dimension directly, not the raw travel.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Magnetic stand 6201-60 | Holds the indicator on any steel surface for setup and runout checks. | Add to cart |
| Magnetic stand, larger 6202-80 | Longer reach and fine adjustment for bigger setups. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range .5IN/12.7MM, resolution .0005IN/0.01MM
- Display reading = coefficient x spindle movement; coefficient adjustable 0 to 9.9999 (e.g. 4.5562 x .14IN travel reads .6380IN)
- Buttons: on/off, zero, data preset, inch/mm, coefficient set, measuring direction change
- Keeps preset data in memory after restart
- CR2032 battery, auto power off
- Data output
- Lug back
Technical Specifications
| Part Number | 2501-10E |
| Brand | Insize |
| Manufacturer Part Number | 2501-10E |
| Product Type | Adjustable Coefficient Digital Indicator, Lug Back |
| Range | .5IN / 12.7MM |
| Resolution | .0005IN / 0.01MM |
| Coefficient | 0 to 9.9999 |
| Battery | CR2032 |
| Data Output | Yes (cable sold separately) |
| Back | Lug back |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.88 lb |
| Package Dimensions | 6.3IN L x 3.94IN W x 2.76IN H |
| UPC/EAN | 6940561941814 |
| Sold As | 1 Each |
What you'll also need
- Data output cable (sold separately)
- Optional contact points
Choosing between options
- Need a flat back? 2501-10FE is the same indicator with a flat back.
Other sizes & versions in this series
- 2501-10FE – .5/12.7MM, Flat Back
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and back style and the coefficient or lever ratio you need — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2501-10E |
Product Family: |
Indicators and Test Indicators |
Supplier Category Code: |
A |
EAN: |
6940561941814 |
Package Weight: |
0.88 lb |
Package Length: |
6.3 in |
Package Width: |
3.94 in |
Package Height: |
2.76 in |
Feature 1: |
Resolution .0005'/0.01mm |
Feature 2: |
DISPLAY READING=COEFFICIENT × SPINDLE MOVEMENT. The coefficient can be adjusted from 0 to 9.9999. For example, coefficient is 4.5562, spindle moves .14', display reading is 4.5562×.14'=.6380' |
Feature 3: |
Button function: on/off, zero, data preset, inch/mm, coefficient set, measuring direction change. |
Feature 4: |
Keep preset data in memory after restrart. |
Feature 5: |
CR2032 battery, automatic power off. |
Feature 6: |
Data output. |
Feature 7: |
Optional accessory: data output cable, contact points |
