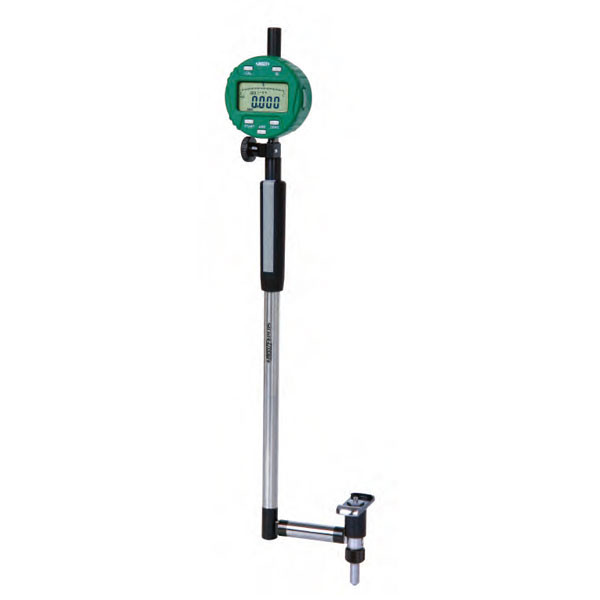

Insize 2443-E510 – Bore Gage, 11.024-20.079IN
L. Dewitt's SKU #: 2443-E510 | Mfr Part #: 2443-E510Insize 2443-E510 is a bore gage for 11.024-20.079IN holes with carbide contact points, accurate to 197μin with 87μin repeatability (without dial comparator). It takes a dial indicator sold separately.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Bore gage setter 2395-400 (used with gage blocks) | Bore Gage Setter, .7-16IN | Add to cart |
| Setting ring at your bore size | Zeroes the gage at your nominal size. Whole-inch rings: 6313-2, 6313-3, 6313-4, 6313-5, 6313-6; other sizes on request. | Choose yours |
Tell us the bore size you check — we match the setting ring and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Please note: Indicator not included. Order a dial indicator separately.
Key Features
- Measuring range 11.024-20.079IN
- Accuracy 197μin (without dial comparator)
- Repeatability 87μin (without dial comparator)
- Carbide contact points
- Accepts .001IN, .0001IN or .00005IN graduation dial indicators
Technical Specifications
| Part Number | 2443-E510 |
| Brand | Insize |
| Manufacturer Part Number | 2443-E510 |
| Product Type | Bore Gage |
| Measuring Range | 11.024-20.079IN |
| Accuracy | 197μin (without dial comparator) |
| Repeatability | 87μin (without dial comparator) |
| Contact Points | Carbide |
| Indicator | Not included |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 12.35 lb |
| Package Dimensions | 31.5IN L x 23.62IN W x 5.91IN H |
| UPC/EAN | 6940561981209 |
| Sold As | 1 Each |
What you'll also need
- Dial indicator of .001IN, .0001IN or .00005IN graduation (not included)
- Setting ring to zero the gage
- Bore gage setter 2395-400 (used with gage blocks)
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and bore diameter range and the indicator graduation you want — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2443-E510 |
Product Family: |
Bore and Inside Measurement |
Supplier Category Code: |
A |
EAN: |
6940561981209 |
Package Weight: |
12.35 lb |
Package Length: |
31.5 in |
Package Width: |
23.62 in |
Package Height: |
5.91 in |
Feature 1: |
Accuracy (without dial comparator) 197uin |
Feature 2: |
Repeatability (without dial comparator) 87uin |
Feature 3: |
Applicable for .001' ir .0001' or .00005' graduation dial indicators |
Feature 4: |
Carbide contact points |
Feature 5: |
Optional accessory: setting ring, bore gage setter |
