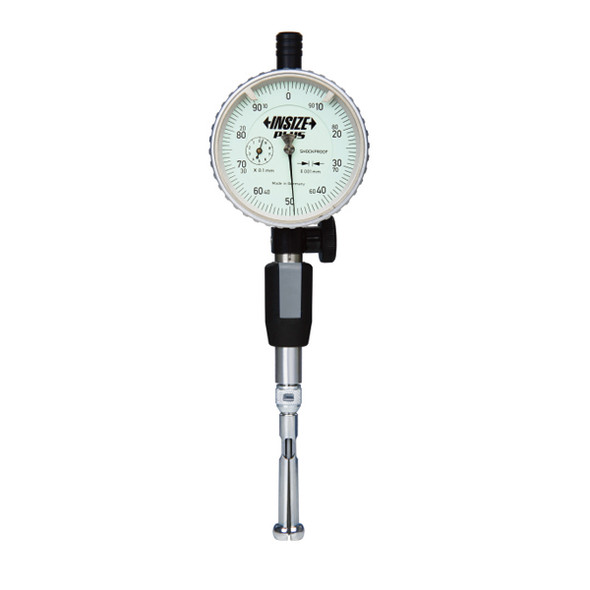

Insize 2427-16 – Split Type Dial Bore Gage for Blind Holes, .606-.654IN
L. Dewitt's SKU #: 2427-16 | Mfr Part #: 2427-16Insize 2427-16 is a split type dial bore gage for blind holes from .606-.654IN. Built for blind holes, it reads bore size by comparison in very small holes; indicator sold separately.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Stand 2491-250 to hold the gage and show measuring depth | Stand for Split Type Dial Bore Gage | Add to cart |
| Setting ring at your bore size | Zeroes the gage at your nominal size. Whole-inch rings: 6313-2, 6313-3, 6313-4, 6313-5, 6313-6; other sizes on request. | Choose yours |
Tell us the bore size you check — we match the setting ring and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Please note: Indicator not included. Order a dial indicator, electronic indicator or dial comparator separately.
Key Features
- Measuring range .606-.654IN
- For blind holes
- Split type contact point
- Accuracy without indicator: 3µm for 1.5-10MM sizes, 4µm for 10-20.6MM sizes
- Repeatability without indicator: 1µm
Technical Specifications
| Part Number | 2427-16 |
| Brand | Insize |
| Manufacturer Part Number | 2427-16 |
| Product Type | Split Type Dial Bore Gage for Blind Holes |
| Measuring Range | .606-.654IN |
| Contact Point | Split type |
| Repeatability | 1µm (without indicator) |
| Indicator | Not included |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.05 lb |
| Package Dimensions | 3.35IN L x 0.94IN W x 0.94IN H |
| UPC/EAN | 6928640351419 |
| Sold As | 1 Each |
What you'll also need
- Dial indicator, electronic indicator or dial comparator (not included)
- Setting ring to zero the gage
- Stand 2491-250 to hold the gage and show measuring depth
Choosing between options
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and hole diameter, hole depth and the indicator you plan to use — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2427-16 |
Product Family: |
Bore and Inside Measurement |
Supplier Category Code: |
A |
EAN: |
6928640351419 |
Package Weight: |
0.05 lb |
Package Length: |
3.35 in |
Package Width: |
0.94 in |
Package Height: |
0.94 in |
Feature 1: |
Split type contact points |
Feature 2: |
Accuracy (without indicator): 3um (measuring range 1.5~10mm), 4um (measuring range 10~20.6mm) |
Feature 3: |
Repeatability (without indicator): 1um |
Feature 4: |
Optional accessory: electronic/dial indicators or dial comparator |
