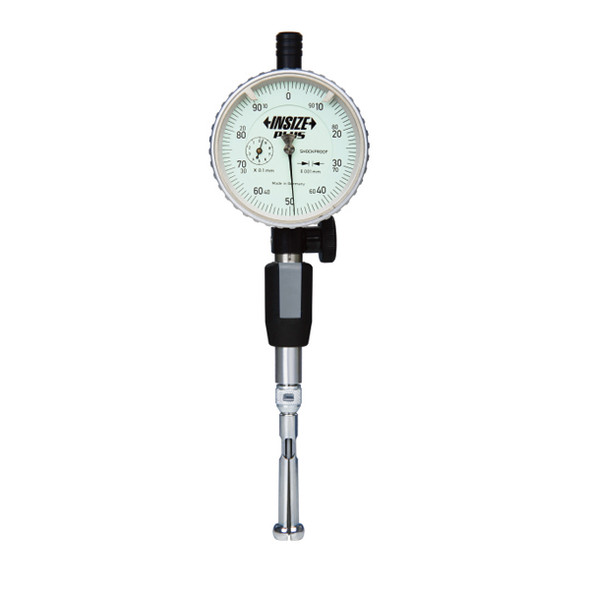

Insize 2426-3D25 – Split Type Dial Bore Gage, .120-.136IN
L. Dewitt's SKU #: 2426-3D25 | Mfr Part #: 2426-3D25Insize 2426-3D25 is a split type dial bore gage for .120-.136IN holes. Its split contact point expands in the bore for comparison readings in very small holes; indicator sold separately.
Please note: Indicator not included. Order a dial indicator, electronic indicator or dial comparator separately.
Key Features
- Measuring range .120-.136IN
- Split type contact point
- Accuracy without indicator: 3µm for 0.95-10MM sizes, 4µm for 10-20.6MM sizes
- Repeatability without indicator: 1µm
Technical Specifications
| Part Number | 2426-3D25 |
| Brand | Insize |
| Manufacturer Part Number | 2426-3D25 |
| Product Type | Split Type Dial Bore Gage |
| Measuring Range | .120-.136IN |
| Contact Point | Split type |
| Repeatability | 1µm (without indicator) |
| Indicator | Not included |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.03 lb |
| Package Dimensions | 2.2IN L x 2.09IN W x 0.87IN H |
| UPC/EAN | 6928640310485 |
| Sold As | 1 Each |
What you'll also need
- Dial indicator, electronic indicator or dial comparator (not included)
- Setting ring to zero the gage
- Stand 2491-250 to hold the gage and show measuring depth
- Holder 2426-HOLDER1E or 2426-HOLDER2E (ask which fits this size)
Choosing between options
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and hole diameter and the indicator you plan to use — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2426-3D25 |
Product Family: |
Bore and Inside Measurement |
Supplier Category Code: |
A |
EAN: |
6928640310485 |
Package Weight: |
0.03 lb |
Package Length: |
2.2 in |
Package Width: |
2.09 in |
Package Height: |
0.87 in |
Feature 1: |
Split type contact points |
Feature 2: |
Accuracy (without indicator): 3um (measuring range 0.95~10mm), 4um (measuring range 10~20.6mm) |
Feature 3: |
Repeatability (without indicator): 1um |
Feature 4: |
Optional accessory: electronic/dial indicators or dial comparator |
