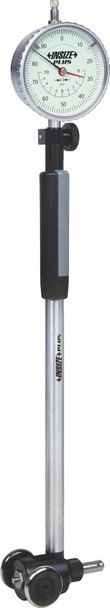

Insize 2422-E60 – Bore Gage, 1.4-2.4IN
L. Dewitt's SKU #: 2422-E60 | Mfr Part #: 2422-E60Insize 2422-E60 is a bore gage for 1.4-2.4IN holes that takes a dial indicator or dial comparator (sold separately). Zero it on a setting ring, then read bore size and roundness by comparison.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Long handle for deep bores: 7352-E500 or 7352-E1000 | Choose yours | |
| Setting ring at your bore size | Zeroes the gage at your nominal size. Whole-inch rings: 6313-2, 6313-3, 6313-4, 6313-5, 6313-6; other sizes on request. | Choose yours |
Tell us the bore size you check — we match the setting ring and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Please note: Indicator not included. Order a dial indicator or dial comparator separately.
Key Features
- Measuring range 1.4-2.4IN
- Accepts .001IN, .0001IN or .00005IN graduation dial indicators or a dial comparator
Technical Specifications
| Part Number | 2422-E60 |
| Brand | Insize |
| Manufacturer Part Number | 2422-E60 |
| Product Type | Bore Gage |
| Measuring Range | 1.4-2.4IN |
| Indicator | Not included |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 2.4 lb |
| Package Dimensions | 13.58IN L x 6.1IN W x 2.24IN H |
| UPC/EAN | 6928640357084 |
| Sold As | 1 Each |
What you'll also need
- Dial indicator or dial comparator of .001IN, .0001IN or .00005IN graduation (not included)
- Setting ring (Insize 6313 setting rings) to zero the gage
- Long handle for deep bores: 7352-E500 or 7352-E1000
Choosing between options
- Deep bores in the same range: 2435-E602 has a 20IN measuring depth; other depths are in the 2435 series.
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and bore diameter range and the indicator graduation you want — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2422-E60 |
Product Family: |
Bore and Inside Measurement |
Supplier Category Code: |
A |
EAN: |
6928640357084 |
Package Weight: |
2.4 lb |
Package Length: |
13.58 in |
Package Width: |
6.1 in |
Package Height: |
2.24 in |
Feature 1: |
Applicable for .001' or .0001' or .00005' graduation dial indicators. |
Feature 2: |
Optional accessory: Dial indicator or dial comparator, Setting ring (part no. 6313), Long handle (part no. 7352). |
Feature 3: |
Range: 1.4-2.4' |
