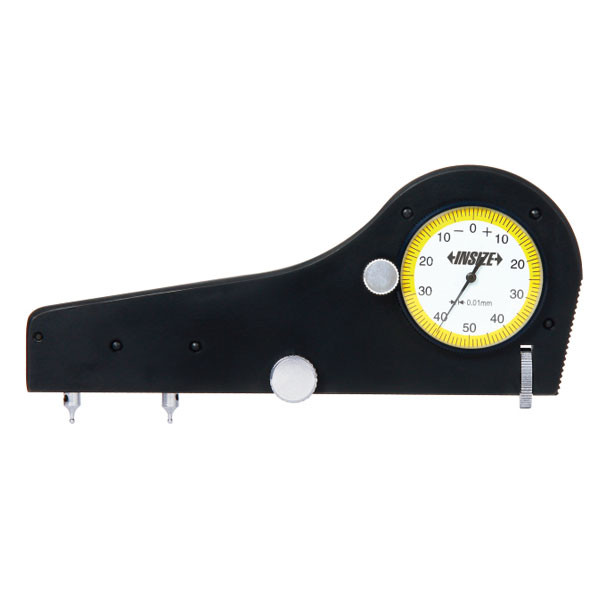

Insize 2235-4 – Internal Thread Pitch Measuring Instrument, 12.7-101.6MM/.5-4IN
L. Dewitt's SKU #: 2235-4 | Mfr Part #: 2235-4Insize 2235-4 measures the pitch of internal threads with nominal diameter larger than 1-1/2IN (38.1MM) and less than 5-1/2IN (139.7MM). Range 12.7-101.6MM/.5-4IN; reads on a dial indicator with 0.01MM graduation.
Key Features
- Range 12.7-101.6MM/.5-4IN
- Dial indicator graduation 0.01MM
- Accuracy 0.02MM
- Measures pitch of internal threads with nominal diameter larger than 1-1/2IN (38.1MM) and less than 5-1/2IN (139.7MM)
Technical Specifications
| Part Number | 2235-4 |
| Brand | Insize |
| Manufacturer Part Number | 2235-4 |
| Product Type | Internal Thread Pitch Measuring Instrument |
| Range | 12.7-101.6MM/.5-4IN |
| Dial Indicator Graduation | 0.01MM |
| Accuracy | 0.02MM |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 2.65 lb |
| Package Dimensions | 11.81IN L x 9.84IN W x 5.91IN H |
| UPC/EAN | 6928640384615 |
| Sold As | 1 Each |
What you'll also need
- Optional ball points and standard pitch blocks
Choosing between options
Other sizes & versions in this series
- 2235-4E – 0.5-4IN/12.7-101.6MM
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and thread size and thread form — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2235-4 |
Product Family: |
Bore and Inside Measurement |
Supplier Category Code: |
A |
EAN: |
6928640384615 |
Package Weight: |
2.65 lb |
Package Length: |
11.81 in |
Package Width: |
9.84 in |
Package Height: |
5.91 in |
Feature 1: |
Dial indicator graduation 0.01mm |
Feature 2: |
Accuracy 0.02mm |
Feature 3: |
Measure the pitch of internal thread with nominal diameter larger than 1 1/2'(38.1mm) and less than 5 1/2'(139.7mm) |
Feature 4: |
Optional accessory: ball points, standard pitch blocks |
