Description

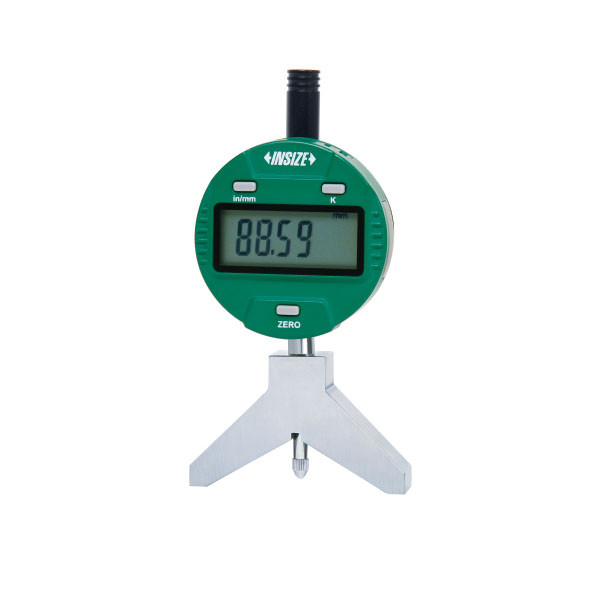

Insize 2188-55 – Digital Radius Gage, .16-2.09IN/4-53MM
L. Dewitt's SKU #: 2188-55 | Mfr Part #: 2188-55Insize 2188-55 is a digital radius gage that reads the radius of an external arc directly, .16-2.09IN/4-53MM, at .0005IN/0.01MM. The arc must span more than 60°.
Key Features
- Range .16-2.09IN/4-53MM, resolution .0005IN/0.01MM
- Accuracy ±0.02MM
- Measures radius of external arcs; arc angle must be larger than 60°
- Displays the radius directly, no calculation
- Buttons: on/off, zero, data preset, inch/mm
- Keeps preset and tolerance data in memory after restart
- CR2032 battery, auto power off
- Stainless steel base
- Pin gage for zero setting included
Technical Specifications
| Part Number | 2188-55 |
| Brand | Insize |
| Manufacturer Part Number | 2188-55 |
| Product Type | Digital Radius Gage |
| Range (Radius) | .16-2.09IN / 4-53MM |
| Resolution | .0005IN / 0.01MM |
| Minimum Arc Angle | Larger than 60° |
| Battery | CR2032 |
| Base | Stainless steel |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.54 lb |
| Package Dimensions | 10.63IN L x 3.94IN W x 2.76IN H |
| UPC/EAN | 6928640381911 |
| Sold As | 1 Each |
Choosing between options
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the radius range you need — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2188-55 |
Product Family: |
Gages and Reference Tools |
Supplier Category Code: |
A |
EAN: |
6928640381911 |
Package Weight: |
1.54 lb |
Package Length: |
10.63 in |
Package Width: |
3.94 in |
Package Height: |
2.76 in |
Feature 1: |
Resolution .0005'/0.01mm |
Feature 2: |
Measure radius of external arc, arc angle of measured surface should be larger than 60° |
Feature 3: |
Display radius value, no need to calcuate |
Feature 4: |
Button function: on/off, zero, data preset, inch/mm |
Feature 5: |
Keep preset data and tolerance data in memory after restart. |
Feature 6: |
CR2032 battery, automatic power off |
Feature 7: |
Stainless steel base |
Feature 8: |
Supplied with pin gage for zero setting |
