Insize 2138-25PE – Digital Indicator with Transmit Button and Light, Flat Back with Lift Cap, 1IN/25.4MM, Flat Back
L. Dewitt's SKU #: 2138-25PE | Mfr Part #: 2138-25PEInsize 2138-25PE is a 1IN/25.4MM digital indicator reading to .00005IN/0.001MM, with a transmit button and light for sending readings to a computer, plus tolerance GO/NO GO display. Meets ASME B89.1.10M-2001.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Data output cable, e.g. 7302-40M keyboard-format cable for digital indicators | Data Output Cable (Keyboard Format) | Add to cart |
| Magnetic stand 6201-60 | Holds the indicator on any steel surface for setup and runout checks. | Add to cart |
| Magnetic stand, larger 6202-80 | Longer reach and fine adjustment for bigger setups. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 1IN/25.4MM, resolution .00005IN/0.001MM
- Transmit button and light
- Meets ASME B89.1.10M-2001
- Digital and analog reading; display rotates 320°
- Buttons: on/off, zero, tolerance GO/NO GO display, data preset, measuring direction change, max./min./TIR, inch/metric
- CR2032 battery, auto power off; data output
- Flat Back with Lift Cap
Technical Specifications
| Part Number | 2138-25PE |
| Brand | Insize |
| Manufacturer Part Number | 2138-25PE |
| Product Type | Digital Indicator with Transmit Button and Light, Flat Back with Lift Cap |
| Range | 1IN/25.4MM |
| Resolution | .00005IN/0.001MM |
| Back | Flat Back with Lift Cap |
| Standard | ASME B89.1.10M-2001 |
| Battery | CR2032 |
| Data Output | Yes (cable sold separately) |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.38 lb |
| Package Dimensions | 10.83IN L x 3.94IN W x 3.54IN H |
| UPC/EAN | 6940561974195 |
| Sold As | 1 Each |
What you'll also need
- Data output cable, e.g. 7302-40M keyboard-format cable for digital indicators (sold separately)
- Optional backs and contact points
Choosing between options

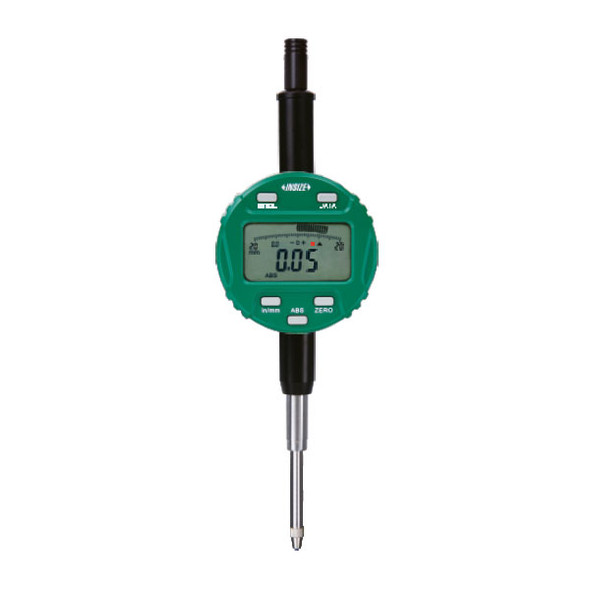

- Coarser reading: 2139-25PE is the same 1IN/25.4MM model at .0005IN/0.01MM.

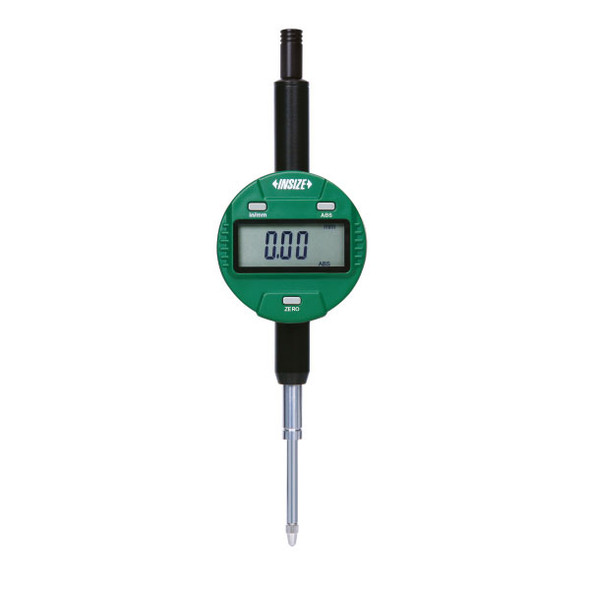

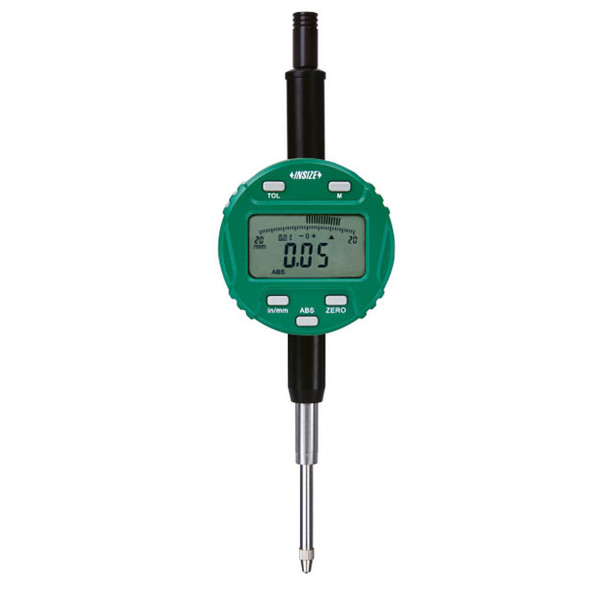

Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and range, resolution and back style — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2138-25PE |
Product Family: |
Indicators and Test Indicators |
Supplier Category Code: |
A |
EAN: |
6940561974195 |
Package Weight: |
1.38 lb |
Package Length: |
10.83 in |
Package Width: |
3.94 in |
Package Height: |
3.54 in |
Feature 1: |
Resolution .00005'/0.001mm |
Feature 2: |
Meet ASME B89.1.10M-2001 |
Feature 3: |
Reading in digital and analog |
Feature 4: |
Display can be rotated by 320° |
Feature 5: |
Button function: on/off, zero, tolerance GO and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric |
Feature 6: |
CR2032 battery, automatic power off |
Feature 7: |
Data output |
Feature 8: |
Optional accessory: data output cable, backs, contact points |
