Description

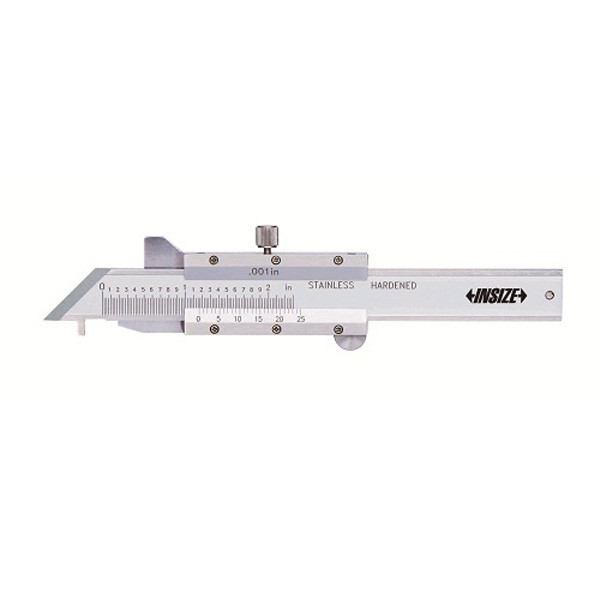

Insize 1267-02 – Chamfer Gage, 0-.2IN
L. Dewitt's SKU #: 1267-02 | Mfr Part #: 1267-02Insize 1267-02 is a 0-.2IN chamfer gage with .001IN graduation for measuring the size of 45° chamfers on hole edges and parts.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 0-.2IN, graduation .001IN
- Measures 45° chamfer dimension
- Stainless steel construction
- Satin chrome plated reading surface
Technical Specifications
| Part Number | 1267-02 |
| Brand | Insize |
| Manufacturer Part Number | 1267-02 |
| Product Type | Chamfer Gage |
| Range | 0-.2IN |
| Graduation | .001IN |
| Chamfer Angle | 45° |
| Material | Stainless steel |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.74 lb |
| Package Dimensions | 7.87IN L x 4.33IN W x 1.18IN H |
| UPC/EAN | 6928640370717 |
| Sold As | 1 Each |
Choosing between options
- Prefer a digital reading with data output? 1537-8 is a digital chamfer gage for 45° chamfers, 0-8MM/0-.315IN, resolution .0005IN/0.01MM.
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the chamfer size you need to check — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
1267-02 |
Product Family: |
Gages and Reference Tools |
Supplier Category Code: |
A |
EAN: |
6928640370717 |
Package Weight: |
0.74 lb |
Package Length: |
7.87 in |
Package Width: |
4.33 in |
Package Height: |
1.18 in |
Feature 1: |
Graduation .001' |
Feature 2: |
Measure 45º chamfer dimension |
Feature 3: |
Made of stainless steel |
Feature 4: |
Satin chrome plated reading surface |
