Description
Insize 1181-M25A – Digital Gear Tooth Caliper, P1-P24

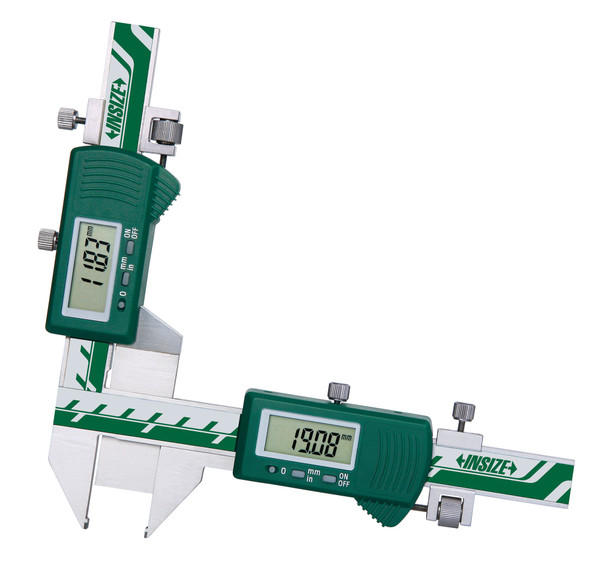

L. Dewitt's SKU #: 1181-M25A | Mfr Part #: 1181-M25AInsize 1181-M25A is a digital gear tooth caliper with carbide tips for gear pitches P1-P24, reading to .0005IN/0.01MM. It measures chordal tooth thickness at a set addendum height.
Key Features
- Pitch range P1-P24, resolution .0005IN/0.01MM
- Carbide tips
- Buttons: zero, on/off, inch/mm
- Auto power off; moving the slider turns it back on
- CR2032 battery
- Stainless steel construction
Technical Specifications
| Part Number | 1181-M25A |
| Brand | Insize |
| Manufacturer Part Number | 1181-M25A |
| Product Type | Digital Gear Tooth Caliper |
| Pitch Range | P1-P24 |
| Resolution | .0005IN / 0.01MM |
| Tips | Carbide |
| Battery | CR2032 |
| Material | Stainless steel |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 2.16 lb |
| Package Dimensions | 11.02IN L x 9.84IN W x 2.36IN H |
| UPC/EAN | 6928640302619 |
| Sold As | 1 Each |
Choosing between options
- Other pitch range: 1181-M50A covers P1/2-P5.
Other sizes & versions in this series
- 1181-M50A – P1/2-P5
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and gear pitch (or module) and tooth size — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
1181-M25A |
Product Family: |
Calipers |
Supplier Category Code: |
A |
EAN: |
6928640302619 |
Package Weight: |
2.16 lb |
Package Length: |
11.02 in |
Package Width: |
9.84 in |
Package Height: |
2.36 in |
Feature 1: |
Resolution: .0005'/0.01mm. |
Feature 2: |
Carbide tips. |
Feature 3: |
Buttons: zero, on/off, inch/mm. |
Feature 4: |
Automatic power off, move the digital unit to turn on power. |
Feature 5: |
Battery CR2032. |
Feature 6: |
Made of stainless steel. |
