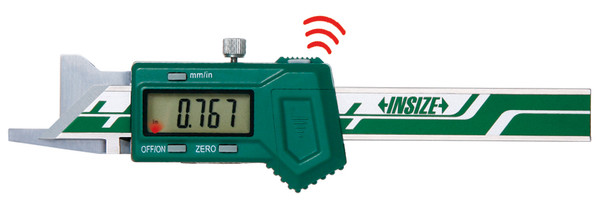

Insize 1180-63WL – Wireless Digital Chamfer Gage, Chamfer 30°, 0-.39IN/0-10MM
L. Dewitt's SKU #: 1180-63WL | Mfr Part #: 1180-63WLInsize 1180-63WL is a digital chamfer gage for 30° chamfers, measuring chamfer size 0-.39IN/0-10MM with .0005IN/0.01MM resolution. Built-in wireless sends readings without a cable.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 0-.39IN/0-10MM, resolution .0005IN/0.01MM
- For 30° chamfers (the 1180 series covers 15°, 20°, 30°, 45° and 60°)
- Buttons: on/off, zero, mm/inch
- Built-in wireless data transmission
- CR2032 battery
- Stainless steel construction
Technical Specifications
| Part Number | 1180-63WL |
| Brand | Insize |
| Manufacturer Part Number | 1180-63WL |
| Product Type | Wireless Digital Chamfer Gage, Chamfer 30° |
| Range | 0-.39IN / 0-10MM |
| Resolution | .0005IN / 0.01MM |
| Chamfer Angle | 30° |
| Data Output | Built-in wireless |
| Battery | CR2032 |
| Material | Stainless steel |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.57 lb |
| Package Dimensions | 18.26IN L x 7.87IN W x 4.33IN H |
| UPC/EAN | 6940561943009 |
| Sold As | 1 Each |
What you'll also need
- Wireless receiver to collect readings (ask us which model pairs with this gage)
Choosing between options
- No wireless needed? 1180-63 is the same 0-.39IN/0-10MM chamfer gage with a standard data output port instead of built-in wireless.
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the chamfer angle and size range — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
1180-63WL |
Product Family: |
Gages and Reference Tools |
Supplier Category Code: |
A |
EAN: |
6940561943009 |
Package Weight: |
1.57 lb |
Package Length: |
18.26 in |
Package Width: |
7.87 in |
Package Height: |
4.33 in |
Feature 1: |
Resolution: .0005'/0.01mm |
Feature 2: |
Measure 15º/20º/30º/45º/60º chamfer dimension |
Feature 3: |
Buttons: on/off, zero, mm/inch |
Feature 4: |
Battery CR2032. Data output. |
Feature 5: |
Made of stainless steel. |
