Description

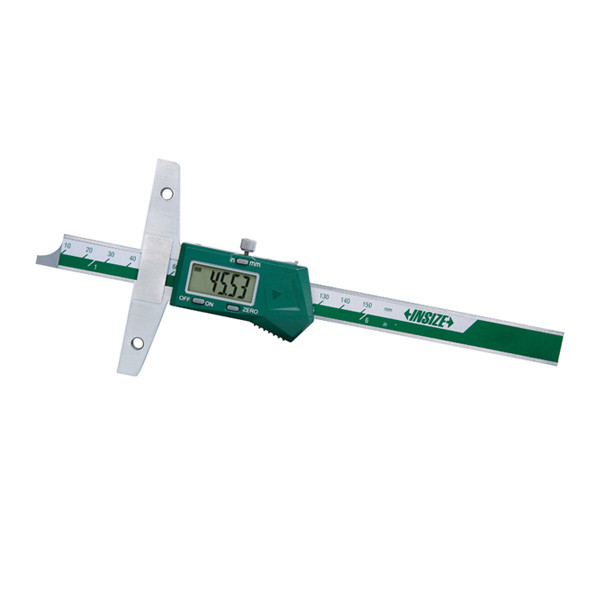

Insize 1147-500 – Digital Depth Gage with Mounting Holes for Extension Base, 0-20IN/0-500MM
L. Dewitt's SKU #: 1147-500 | Mfr Part #: 1147-500Insize 1147-500 is a 0-20IN/0-500MM digital depth gage with mounting holes for an extension base, reading to .0005IN/0.01MM. Fit an Insize 6141 extension base for a longer reference face across wide openings.
Key Features
- Range 0-20IN/0-500MM, resolution .0005IN/0.01MM
- Mounting holes for 6141 extension base
- Buttons: on/off, zero, inch/mm
- Auto power off; moving the slider turns it back on
- CR2032 battery; data output
- Stainless steel construction
Technical Specifications
| Part Number | 1147-500 |
| Brand | Insize |
| Manufacturer Part Number | 1147-500 |
| Product Type | Digital Depth Gage with Mounting Holes for Extension Base |
| Range | 0-20IN / 0-500MM |
| Resolution | .0005IN / 0.01MM |
| Data Output | Yes (cable sold separately) |
| Battery | CR2032 |
| Material | Stainless steel |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 2.65 lb |
| Package Dimensions | 27.56IN L x 5.91IN W x 1.57IN H |
| UPC/EAN | 6940561941685 |
| Sold As | 1 Each |
What you'll also need
- Data output cable (sold separately) to connect to a computer
- Extension base, Insize 6141 series, for a wider reference face
Choosing between options
- Want readings sent without a cable? 1147-500WL is the same 0-500MM/0-20IN depth gage with built-in wireless.
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and depth range and the extension base length you need — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
1147-500 |
Product Family: |
Depth Measurement |
Supplier Category Code: |
A |
EAN: |
6940561941685 |
Package Weight: |
2.65 lb |
Package Length: |
27.56 in |
Package Width: |
5.91 in |
Package Height: |
1.57 in |
Feature 1: |
Resolution: .0005'/0.01mm. |
Feature 2: |
Buttons: on/off, zero, inch/mm. |
Feature 3: |
Automatic power off, move the digital unit to turn on power. |
Feature 4: |
Battery CR2032. Data output. |
Feature 5: |
Made of stainless steel. |
Feature 6: |
Optional accessory: data output cable, extension base (part no. 6141) |
