Description

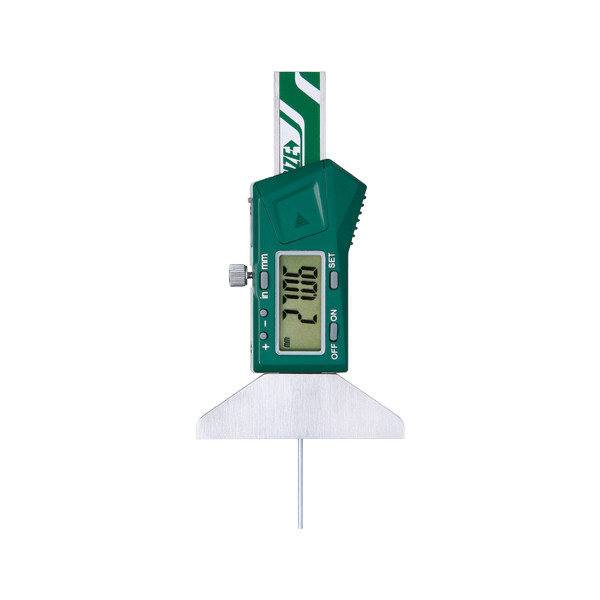

Insize 1140-25 – Mini Digital Depth Gage with Round Bar, 0-1IN/0-25MM
L. Dewitt's SKU #: 1140-25 | Mfr Part #: 1140-25Insize 1140-25 is a 0-1IN/0-25MM mini digital depth gage with a round bar for measuring the depth of small grooves and holes, reading to .0005IN/0.01MM.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Data output cable 7302-21 | Keyboard-format cable for digital depth gages; sends readings to Excel or SPC software. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 0-1IN/0-25MM, resolution .0005IN/0.01MM
- Accuracy ±0.02MM
- Round bar for small grooves and holes
- Buttons: on/off, set, inch/mm, preset (+/-)
- Auto power off; moving the slider turns it back on
- CR2032 battery; data output
- Stainless steel construction
Technical Specifications
| Part Number | 1140-25 |
| Brand | Insize |
| Manufacturer Part Number | 1140-25 |
| Product Type | Mini Digital Depth Gage with Round Bar |
| Range | 0-1IN / 0-25MM |
| Resolution | .0005IN / 0.01MM |
| Accuracy | ±0.02MM |
| Depth Bar | Round |
| Data Output | Yes (cable sold separately) |
| Battery | CR2032 |
| Material | Stainless steel |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.69 lb |
| Package Dimensions | 6.1IN L x 3.82IN W x 1.65IN H |
| UPC/EAN | 6928640387616 |
| Sold As | 1 Each |
What you'll also need
- Data output cable (sold separately) to connect to a computer
Choosing between options
- Also measuring tire tread? 1145-25A is a 0-1IN/0-25MM mini digital depth gage supplied with a zero set surface.
Other sizes & versions in this series
- 1140-50 – 0-2IN/0-50MM
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the depth range and hole size — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
1140-25 |
Product Family: |
Depth Measurement |
Supplier Category Code: |
A |
EAN: |
6928640387616 |
Package Weight: |
0.69 lb |
Package Length: |
6.1 in |
Package Width: |
3.82 in |
Package Height: |
1.65 in |
Feature 1: |
Resolution .0005'/0.01mm |
Feature 2: |
Measure depth of small groove and hole. |
Feature 3: |
Buttons: on/off, set, inch/mm, preset (+,-). |
Feature 4: |
Automatic power off, move the digital unit to turn on power. |
Feature 5: |
Battery CR2032. Data output. |
Feature 6: |
Made of stainless steel. |
Feature 7: |
Optional accessory: data output cable |
