Description

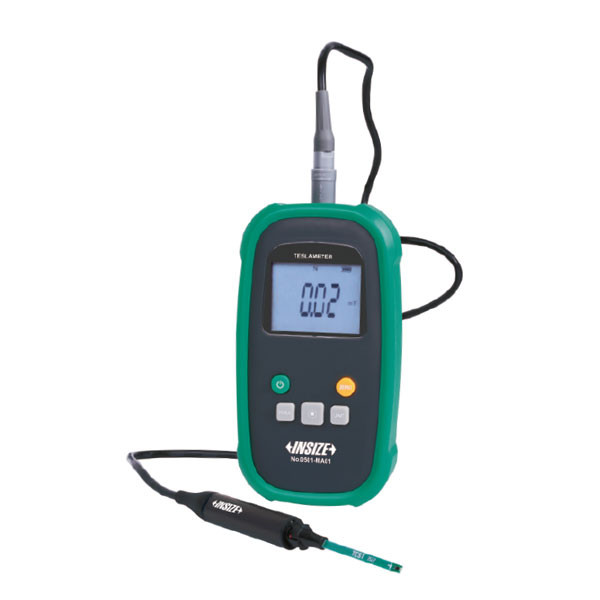

Insize 0501-MA05 – Teslameter (Gaussmeter), 2000mT, Accuracy ±2.0%(≤1000mT), ±5.0% (1000mT-2000mT)
L. Dewitt's SKU #: 0501-MA05 | Mfr Part #: 0501-MA05Insize 0501-MA05 is a teslameter (gaussmeter) for DC magnetic fields up to 2000mT, with ±2.0% accuracy up to 1000mT and ±5.0% from 1000-2000mT. It shows field strength and N/S polarity; use it to check magnets, magnetic fixtures and residual magnetism on parts.
Key Features
- Range 2000mT; accuracy ±2.0% (≤1000mT), ±5.0% (1000-2000mT)
- Resolution 0.01mT/0.1mT
- Measures magnetic induction of DC magnetic fields
- Displays N/S polarity of the field
- One-key zero removes zero drift before measuring
- Maximum value hold for changing fields
- Units switch between mT and G (1mT = 10G)
- Temperature coefficient ±.1%/K; zero drift ±.5mT/h
Technical Specifications
| Part Number | 0501-MA05 |
| Brand | Insize |
| Manufacturer Part Number | 0501-MA05 |
| Product Type | Teslameter (Gaussmeter) |
| Range | 2000mT |
| Accuracy | ±2.0% (≤1000mT); ±5.0% (1000-2000mT) |
| Resolution | 0.01mT / 0.1mT |
| Temperature Coefficient | ±.1%/K |
| Zero Drift | ±.5mT/h |
| Units | mT, G |
| Field Type | DC |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.1 lb |
| Package Dimensions | 9.06IN L x 3.74IN W x 1.77IN H |
| UPC/EAN | 6940561934571 |
| Sold As | 1 Each |
What you'll also need
Choosing between options
- Need tighter accuracy? 0501-MA01 covers the same 2000mT at ±1.0%.
Other sizes & versions in this series
- 0501-MA01 – 2000mT, Accuracy ±1.0%
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the field strength you need to measure and probe type (axial or radial) — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
0501-MA05 |
Product Family: |
Precision Measuring Tools |
Supplier Category Code: |
B |
EAN: |
6940561934571 |
Package Weight: |
1.1 lb |
Package Length: |
9.06 in |
Package Width: |
3.74 in |
Package Height: |
1.77 in |
Feature 1: |
0.01mT/0.1mT |
Feature 2: |
Temperature coefficient: ±.1%/K |
Feature 3: |
Zero drift ±.5mT/h |
Feature 4: |
Measure magnetic induction of DC magnetic field |
Feature 5: |
Directly display the N/S polarity of the measured magnetic field |
Feature 6: |
One-key zero function: eliminate the influence of zero drift before measurement |
Feature 7: |
Maximum value hold: record the maximum value of the changing magnetic field |
Feature 8: |
Unit switch between mT or G(1mT=10G) |
