Description

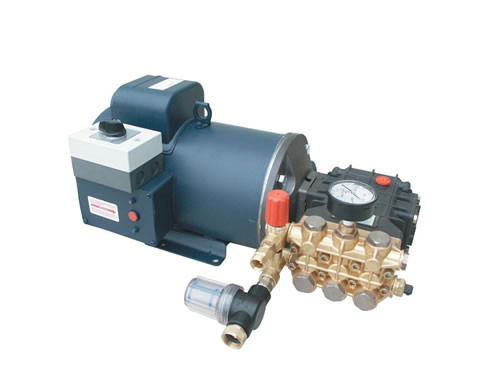

Cam Spray 3000GEAR 3PH 208 230V 3PH Stationary Cold Water Pressure Washers
L. DeWitt McCarter SKU #: 3000GEAR-3PH | Mfr Part #: 3000GEAR-3PH | Model: 3000GEAR-3PH 208-230V 3PH
Cam Spray base-mount pressure washers have a sturdy base plate for shelf or permanent installation, ideal for detail shops, automotive, equipment dealerships and plant washdown.
Rated at 3000 PSI and 4 GPM.
Standard Features
- Triplex plunger pump with ceramic plungers and stainless steel valves
- Adjustable pressure
- Chemical injection
- Trigger gun with 50' non-marking hose
- Heavy-duty wand with quick-change tips in 0°, 15°, 25°, 40° and soap tip
- Totally enclosed motor
- 10' power cord to be wired into a circuit with a GFCI breaker
Specifications
| Brand | Cam Spray |
|---|---|
| Model | 3000GEAR-3PH 208-230V 3PH |
| Cam Spray Part # | 3000GEAR-3PH |
| Series | Base Mount Electric Cold Water |
| Water Temperature | Cold water |
| Pressure | 3000 PSI / 207 bar |
| Flow | 4 GPM / 15.2 LPM |
| Power | 7.5 HP |
| Voltage / Amps / Phase | 208-230V / 3-phase |
| Max Pump Inlet Water Temp | 160°F |
| Dimensions (L x W x H) | 28" x 20" x 13" |
| Ship Weight | 180 lb |
| Country of Origin | USA |
| Ships From | Iowa Falls, IA (factory direct) |
- Pressure, flow and horsepower match the catalog 3000GEAR rating; this 208-230V three-phase configuration has a different amp draw. Ask us for the exact amperage before sizing the circuit.
- Optional swivel hose reel with wall-mounting bracket available.
Shipping & Freight
Ships LTL freight direct from the Cam Spray factory in Iowa Falls, IA. Ship weight is about 180 lb and the unit measures 28" x 20" x 13" (L x W x H). Freight is quoted to your ZIP code. Tell us if you need liftgate, residential or inside delivery, or send your own freight account and we will route it.
Common Questions
What is the rated output of the Cam Spray 3000GEAR?
3000 PSI and 4 GPM, per the Cam Spray catalog.
What power supply does it need?
208-230V / 3-phase. Confirm your circuit and receptacle before ordering; larger motors are hard-wired to a GFCI-protected circuit.
Can I get a quote for multiple units or a fleet?
Yes. Send the model, quantity and ship-to ZIP through the quote form below or call (210) 494-1997.
