Description

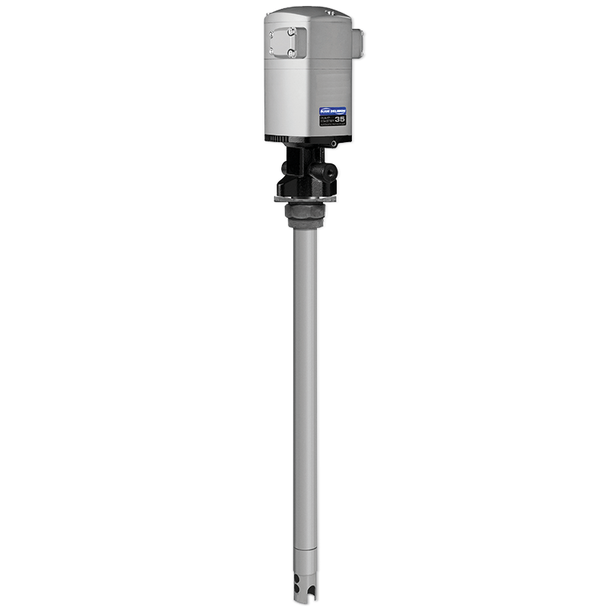

BIJUR DELIMON F530611 PM35 PNEUMATIC DRUM PUMP, 60:1, 400 LB DRUM
L. Dewitt's SKU #: F530611 | Mfr Part #: F530611The Bijur Delimon F530611 is a compressed-air-operated reciprocating piston pump for 400 lb (55 gal) drum containers, delivering high-pressure grease (to nlgi 2) anywhere plant air is available. Self-priming, compatible with mineral and synthetic lubricants, and equally at home on mobile service units or fixed drum installations.
Air-Operated Drum Pumping
Connect plant air through a filter-regulator, slowly bring pressure up from zero, and the pump primes itself; lubricant delivers at up to 0.7 lb/min. Mount on the drum with a cover fitted with a 2 in bung; keep the foot valve off contaminated floors to protect the seals.
Technical Specifications
| Pump Type | Air-operated reciprocating piston |
| Pressure Ratio | 60:1 |
| Drum / Container Size | 400 lb (55 gal) drum |
| Lubricant | Grease (to NLGI 2) |
| Max Air Pressure | 140 psi (10 bar) |
| Min Air Pressure | 20 psi (1.5 bar) |
| Air Inlet | 1/4 in NPT (F) |
| Outlet | 1/4 in NPT (F) |
Key Features
- 60:1 Pressure Ratio: converts shop air into high-pressure lubricant delivery.
- Self-Priming: prime once at installation and pump on demand.
- Mineral & Synthetic Compatible: handles greases to NLGI 2 / industrial oils.
- Mobile or Fixed: mount on service carts or dedicated drums.
Common Applications
- Maintenance shops and lube rooms
- Mobile lubrication service units
- Central grease supply for divider-valve systems
- Heavy equipment service bays
Product Documentation
Click to view in your browser — use your browser's save option to download a copy.
Request a Quote
Need a different configuration, volume pricing, or help designing a system?
Send us your part numbers and quantities — our technical team responds fast during business hours.
Contact Information
Authorized Bijur Delimon distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Bijur Part Number: |
F530611 |
Pump Type: |
Air-Operated Drum/Barrel Pump |
Pressure Ratio: |
60:1 |
Container Size: |
400 lb (55 gal) drum |
Lubricant: |
Grease (to NLGI 2) |
Available Qty: |
2 |
Lead Time: |
In Stock - Ships 3-5 Business Days |
