Description

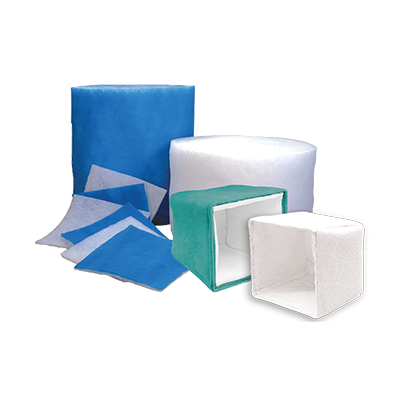

Koch Filter 574-020-020 SPT5 Synthetic Media Pads 20x20 Air Filter Media, Case of 25
Koch Filter SKU: 574-020-020 Manufacturer Part Number: 574-020-020
Quick Answer
574-020-020 is a Koch SPT5 20x20 synthetic media pad for prefilter and pad-frame applications for commercial and industrial air filtration systems, pad frames, central air handlers, unit ventilators and fan coil units. MERV 4 performance with 80% average arrestance.
Why It Fits
- Used as prefilter media to help protect more expensive final filters in many air handling systems.
- Available as pads, blankets, sleeve rolls, or bulk rolls depending on the SKU and media family.
- Useful for commercial and industrial central air handlers, unit ventilators, fan coil units, and service replacement programs.
- Confirm media style, width, thickness, roll length, and frame requirements before ordering.
Need help confirming replacement media?
Send us your current media style, roll width, pad size, thickness, frame type and application details.
Send us your current media style, roll width, pad size, thickness, frame type and application details.
Specifications
| Brand | Koch Filter |
| Manufacturer | Koch Filter Corporation |
| Manufacturer Part Number | 574-020-020 |
| Product Family | Synthetic Media Pads |
| Media Form | Pad |
| Media Type | Synthetic polyester air filter media |
| Media Style | SPT5 |
| Nominal Size | 20x20 |
| Thickness | 0.50" |
| Color | Blue/White |
| Tackified | Yes |
| MERV Rating | MERV 4 |
| Average Arrestance | 80% |
| Dust Holding Capacity | 340 grams |
| Initial Resistance | 0.10 in. w.g. |
| Carton Quantity | 25 per case |
| Carton Dimensions | 20.5 L x 20.5 W x 26.5 H in |
| Cartons Per Skid | 16 |
| Country of Origin | USA |
Additional Information
Filter Brand: |
Koch Filter |
Manufacturer: |
Koch Filter Corporation |
Manufacturer Part Number: |
574-020-020 |
Product Family: |
Synthetic Media Pads |
Product Series: |
Synthetic Media Pads |
Media Form: |
Pad |
Media Type: |
Synthetic polyester air filter media |
Media Style: |
SPT5 |
Nominal Size: |
20x20 |
Thickness: |
0.50" |
Weight: |
4.3 oz/sq yd |
Color: |
Blue/White |
Tackified: |
Yes |
Roll Length: |
135 ft |
Average Arrestance: |
80% |
Dust Holding Capacity: |
340 grams |
Initial Resistance: |
0.10 in. w.g. |
MERV Rating: |
MERV 4 |
Carton Quantity: |
25 per case |
Carton Dimensions: |
20.5 L x 20.5 W x 26.5 H in |
Cartons Per Skid: |
16 |
Country of Origin: |
USA |
