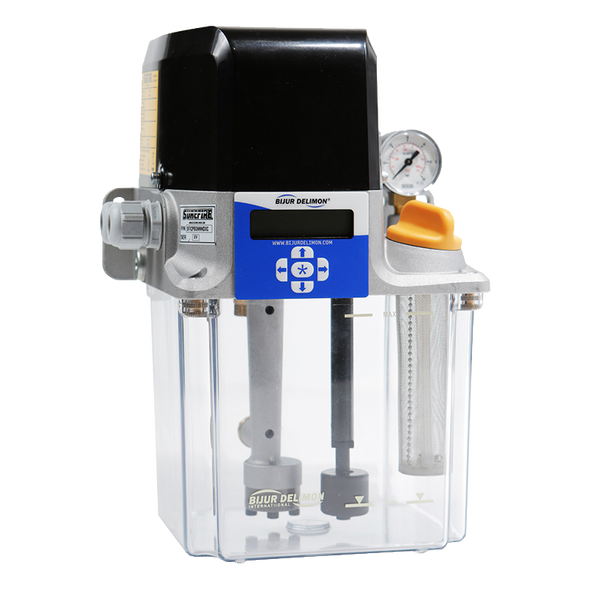

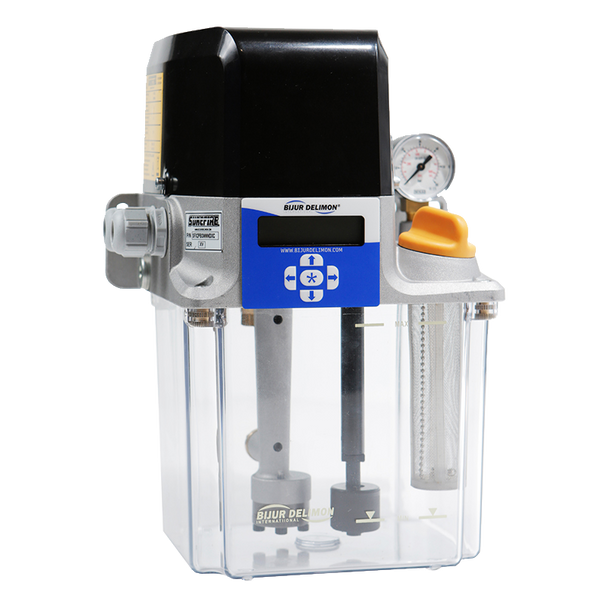

Bijur Delimon SureFire II – 2 Liter SLR Lubricator | 100/115 VAC | Terminal Block
L. Dewitt's SKU #: SFX2PASNNNBXC | Mfr Part #: SFX2PASNNNBXCThe Bijur Delimon SureFire II (SFX2PASNNNBXC) is a self-contained, motor-driven gear pump engineered for automatic, centralized lubrication on industrial production machinery. Configured as a 2 Liter SLR system with 100/115 VAC power and Terminal Block, this pump serves up to 100 lubrication points and is designed to reduce bearing failures, minimize machine downtime, and eliminate the inconsistency of manual lubrication.
Single Line Resistance (SLR) System
The SFX SLR version is designed for Single Line Resistance cyclic lubrication systems. The gear pump delivers pressurized oil to the distribution network, forcing all resistance fittings (meter units) to flow proportioned quantities of oil to each friction point simultaneously. The pump builds pressure until the pressure relief valve setting of 75 psi (5 bar) is reached. Once the motor stops, line pressure returns to near 0 psi, actuating a quick-dump valve that relieves the lines back to the reservoir. SLR systems serve up to 100 lubrication points and use oil exclusively.
Terminal Block — Control & Monitoring
This unit ships with a Terminal Block only — no integrated controller. It is designed for operation via a customer-supplied PLC, DCS, or external control system. The terminal block provides fault-free electrical connections and full control flexibility for integration into existing machine control architectures.
Technical Specifications
| Distribution System | SLR — Single Line Resistance |
| Max Output Pressure | 75 psi (5 bar) |
| Pressure Switch Setting | Closes at 20 psi (1.4 bar) |
| Output Volume | 250 cc/min @ 60 Hz (115/230VAC) | 250 cc/min (24VDC) |
| Motor Voltage | 100/115 VAC, 50/60 Hz Single Phase — 1.0A running (1.2A peak start) |
| Reservoir Capacity | 2 Liter |
| Reservoir Material | Plastic – Luran (Blue Tint) |
| Lubricant Viscosity | 20 to 1,500 cSt at operating temperature |
| Level Monitoring | Standard (N/O Float Switch) |
| Pressure Monitoring | Pressure Switch + Gauge |
| Output Connections | G 1/4 BSPP (×2, one each side) |
| Return Line | G 1/4 BSPP |
| IP Rating | IP-54 |
| Operating Temp. | 40°F – 105°F (5°C – 40°C) |
| Dimensions (approx.) | 149mm W × 150mm D × 279mm H |
Key Features
- Self-Contained Electric Pump: Motor-driven gear pump with reservoir, pump head, and controls in one compact unit — no external power unit required.
- SLR (75 psi max) Distribution: Pressurizes all resistance fittings simultaneously for proportioned oil delivery to every bearing point.
- 2 Liter Plastic Reservoir: Luran (blue tint) plastic reservoir for easy visual oil-level monitoring.
- Low-Level Switch: Integrated float switch (Standard (N/O Float Switch)) provides fail-safe low-lubricant detection to protect machinery from running dry.
- G 1/4 BSPP Outlets (×2): Oil outlet connections on either side of the pump head for flexible installation and plumbing routing.
- CE Approved / IP-54 Rated: Liquid-tight electrical fitting; operates in temperatures from 40°F to 105°F (5°C–40°C).
Common Applications
- Single Line Resistance (SLR) systems with Bijur meter units
- CNC Machining Centers and Transfer Lines
- Industrial Presses and Stamping Equipment
- Injection Molding Machines
- Conveyor and Material Handling Systems
Technical Support & System Design
Need help selecting the right SureFire II configuration or designing a complete lubrication system? L. Dewitt McCarter, Inc. is your authorized Bijur Delimon source.
Contact Our Technical TeamWarranty Information
Additional Information
Bijur Part Number: |
SFX2PASNNNBXC |
Distribution System: |
SLR – Single Line Resistance (75 psi max) |
Reservoir: |
2 Liter, Plastic – Luran (Blue Tint) |
Voltage: |
100/115 VAC, 50/60 Hz (1.0A) |
Controller: |
Terminal Block (No Integral Control) |
Lubricant: |
Standard Oil (20–1500 cSt) |
