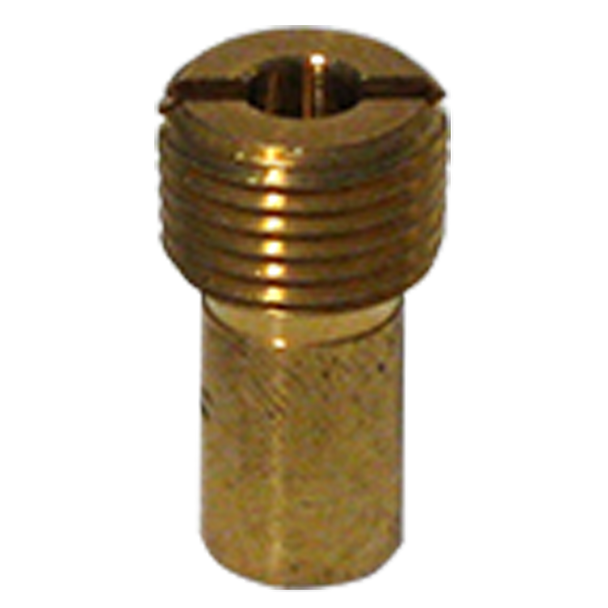

Bijur Delimon – Control Unit CKB-4/0: Extra Slow Flow, Insert Type B
L. Dewitt's SKU #: B7134 | Mfr Part #: B7134The Bijur Delimon B7134 Control Unit (Type CKB-4/0) is an oil proportioning device for continuous-flow lubrication systems. The CKB is the reverse configuration of the CKA: its inlet is 1/8 NPT (from the supply line) and the outlet shank inserts into a drilled passage leading to the bearing. It delivers "Extra Slow" output per cycle.
Calibrated Extra Slow Output
As a CKB-4/0 unit, this control unit delivers the Extra Slow output rate, one step above the minimum. Designed for the smallest precision bearing points in continuous-flow lubrication circuits where a near-minimal, steady oil supply is required without risk of over-lubrication.
Continuous System Design
For continuous-flow lubrication systems only. No internal check valve. Do not use in cyclic pump systems.
Technical Specifications
| Type Designation | CKB-4/0 (Insert Type B) |
| Output Rate | Extra Slow |
| Type | Control Unit — Continuous Flow |
| Inlet Thread | 1/8 NPT Male (from supply line) |
| Outlet | Insert shank (into drilled bearing passage) |
| Material | Brass |
Key Features
- 1/8 NPT inlet from continuous-system supply line
- Insert-type outlet — no external outlet tubing needed
- Precision orifice calibrated to designated output rate
- For machines with drilled internal bearing passages
Common Applications
- Bearing housings with drilled internal passages in continuous systems
- Industrial spindles with internal oil galleries
- Machines with cast-in outlet channels
- Applications where external outlet tubing is not feasible
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B7134 |
Unit Type: |
Control Unit |
Type, Location & Mating Parts: |
Insert Type |
Flow Rate: |
Extra Slow |
